We Make Connections EZ! Crimpers

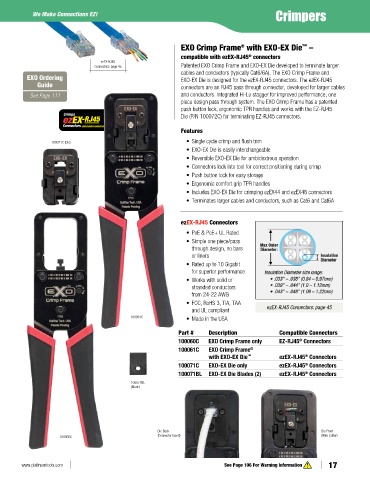

EXO Crimp Frame with EXO-EX Die –
™
®
®
compatible with ezEX-RJ45 connectors
ezEX-RJ45
Connectors: page 45 Patented EXO Crimp Frame and EXO-EX Die developed to terminate larger
cables and conductors (typically Cat6/6A). The EXO Crimp Frame and
EXO Ordering EXO-EX Die is designed for the ezEX-RJ45 connectors. The ezEX-RJ45
Guide connectors are an RJ45 pass through connector, developed for larger cables
See Page 111 and conductors. Integrated Hi-Lo stagger for improved performance, one
piece design pass through system. The EXO Crimp Frame has a patented
push button lock, ergonomic TPR handles and works with the EZ-RJ45
Die (P/N 100072C) for terminating EZ-RJ45 connectors.

Features

100071C (Die) • Single cycle crimp and flush trim
• EXO-EX Die is easily interchangeable
• Reversible EXO-EX Die for ambidextrous operation
• Connectors lock into tool for correct positioning during crimp
• Push button lock for easy storage
• Ergonomic comfort grip TPR handles
• Includes EXO-EX Die for crimping ezEX44 and ezEX48 connectors
• Terminates larger cables and conductors, such as Cat6 and Cat6A

ezEX-RJ45 Connectors
• PoE & PoE+ UL Rated
• Simple one piece/pass
through design, no bars
or liners
• Rated up to 10 Gigabit
for superior performance
• Works with solid or
stranded conductors
from 24-22 AWG
• FCC, RoHS 3, TIA, TAA
and UL compliant ezEX-RJ45 Connectors: page 45
100061C • Made in the USA

Part # Description Compatible Connectors
100060C EXO Crimp Frame only EZ-RJ45 Connectors
®
100061C EXO Crimp Frame
®
®
with EXO-EX Die ™ ezEX-RJ45 Connectors
®
100071C EXO-EX Die only ezEX-RJ45 Connectors
100071BL EXO-EX Die Blades (2) ezEX-RJ45 Connectors
®
100071BL
(Blade)

Die Back Die Front
100060C (Connector Insert) (Wire Cutter)
