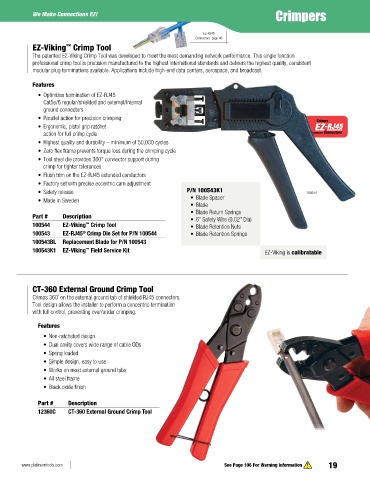

Page 21 - PlatinumTools端子光纤工具

We Make Connections EZ! Crimpers

EZ-RJ45
Connectors: page 46
EZ-Viking Crimp Tool
™
The patented EZ-Viking Crimp Tool was developed to meet the most demanding network performance. This single function
professional crimp tool is precision manufactured to the highest international standards and delivers the highest quality, consistent
modular plug terminations available. Applications include high-end data centers, aerospace, and broadcast.

Features
• Optimizes termination of EZ-RJ45
Cat5e/6 regular/shielded and external/internal
ground connectors
• Parallel action for precision crimping
• Ergonomic, pistol grip ratchet
action for full crimp cycle
• Highest quality and durability – minimum of 50,000 cycles
• Zero flex frame prevents torque loss during the crimping cycle
• Tool steel die provides 360° connector support during
crimp for tighter tolerances
• Flush trim on the EZ-RJ45 extended conductors
• Factory set with precise eccentric cam adjustment
• Safety release P/N 100543K1 100544
• Made in Sweden • Blade Spacer
• Blade
• Blade Return Springs
Part # Description • 6" Safety Wire (0.02" Dia)
100544 EZ-Viking Crimp Tool • Blade Retention Nuts
™
100543 EZ-RJ45 Crimp Die Set for P/N 100544 • Blade Retention Springs
®
100543BL Replacement Blade for P/N 100543
100543K1 EZ-Viking Field Service Kit EZ-Viking is calibratable
™

CT-360 External Ground Crimp Tool

Crimps 360˚ on the external ground tab of shielded RJ45 connectors.
Tool design allows the installer to perform a concentric termination
with full control, preventing over/under crimping.
Features

• Non-ratcheted design
• Dual cavity covers wide range of cable ODs
• Spring loaded
• Simple design, easy to use
• Works on most external ground tabs
• All steel frame
• Black oxide finish

Part # Description
12360C CT-360 External Ground Crimp Tool

www.platinumtools.com See Page 106 For Warning Information 19
