Crimpers

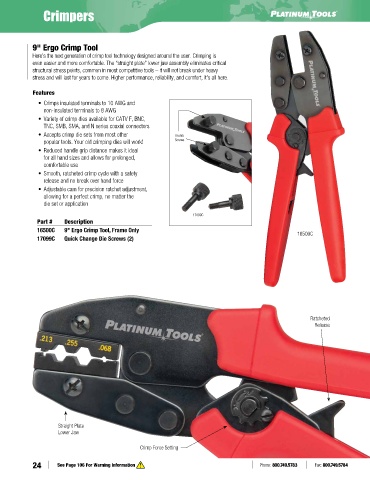

9" Ergo Crimp Tool
Here’s the next generation of crimp tool technology designed around the user. Crimping is
even easier and more comfortable. The “straight plate” lower jaw assembly eliminates critical
structural stress points, common in most competitive tools – it will not break under heavy
stress and will last for years to come. Higher performance, reliability, and comfort, it’s all here.

Features
• Crimps insulated terminals to 10 AWG and
non-insulated terminals to 8 AWG
• Variety of crimp dies available for CATV F, BNC,
TNC, SMB, SMA, and N series coaxial connectors

• Accepts crimp die sets from most other Thumb
popular tools. Your old crimping dies will work! Screws

• Reduced handle grip distance makes it ideal
for all hand sizes and allows for prolonged,
comfortable use

• Smooth, ratcheted crimp cycle with a safety
release and no break over hand force

• Adjustable cam for precision ratchet adjustment,
allowing for a perfect crimp, no matter the
die set or application

17099C
Part # Description
16500C 9" Ergo Crimp Tool, Frame Only 16500C
17099C Quick Change Die Screws (2)

Ratcheted
Release

Straight Plate
Lower Jaw

Crimp Force Setting

24 See Page 106 For Warning Information Phone: 800.749.5783 Fax: 800.749.5784
