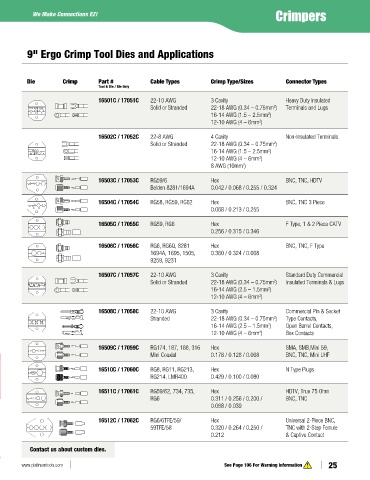

9" Ergo Crimp Tool Dies and Applications

Die Crimp Part # Cable Types Crimp Type/Sizes Connector Types
Tool & Die / Die Only

16501C / 17051C 22-10 AWG 3 Cavity Heavy Duty Insulated
2
Solid or Stranded 22-18 AWG (0.34 – 0.75mm ) Terminals and Lugs
16-14 AWG (1.5 – 2.5mm )
2
2
12-10 AWG (4 – 6mm )
16502C / 17052C 22-8 AWG 4 Cavity Non-Insulated Terminals
2
Solid or Stranded 22-18 AWG (0.34 – 0.75mm )
2
16-14 AWG (1.5 – 2.5mm )
2
12-10 AWG (4 – 6mm )
8 AWG (10mm )
2
16503C / 17053C RG59/6 Hex BNC, TNC, HDTV
Belden 8281/1694A 0.042 / 0.068 / 0.255 / 0.324

16504C / 17054C RG58, RG59, RG62 Hex BNC, TNC 3 Piece
0.068 / 0.213 / 0.255

16505C / 17055C RG59, RG6 Hex F Type, 1 & 2 Piece CATV
0.256 / 0.315 / 0.346

16506C / 17056C RG6, RG6Q, 8281 Hex BNC, TNC, F Type
1694A, 1695, 1505, 0.360 / 0.324 / 0.068
9259, 9231

16507C / 17057C 22-10 AWG 3 Cavity Standard Duty Commercial
2
Solid or Stranded 22-18 AWG (0.34 – 0.75mm ) Insulated Terminals & Lugs
16-14 AWG (2.5 – 1.5mm )
2
12-10 AWG (4 – 6mm )
2
16508C / 17058C 22-10 AWG 3 Cavity Commercial Pin & Socket
2
Stranded 22-18 AWG (0.34 – 0.75mm ) Type Contacts,
2
16-14 AWG (2.5 – 1.5mm ) Open Barrel Contacts,
12-10 AWG (4 – 6mm ) Box Contacts
2
16509C / 17059C RG174, 187, 188, 316 Hex SMA, SMB,Mini 59,
Mini Coaxial 0.178 / 0.128 / 0.068 BNC, TNC, Mini UHF

16510C / 17060C RG8, RG11, RG213, Hex N Type Plugs
RG214, LMR400 0.429 / 0.100 / 0.080

16511C / 17061C RG59/62, 734, 735, Hex HDTV, True 75 Ohm
RG6 0.311 / 0.256 / 0.200 / BNC, TNC
0.068 / 0.039

16512C / 17062C RG6/6TFE/59/ Hex Universal 2-Piece BNC,
59TFE/58 0.320 / 0.264 / 0.250 / TNC with 2-Step Ferrule
0.212 & Captive Contact

Contact us about custom dies.
