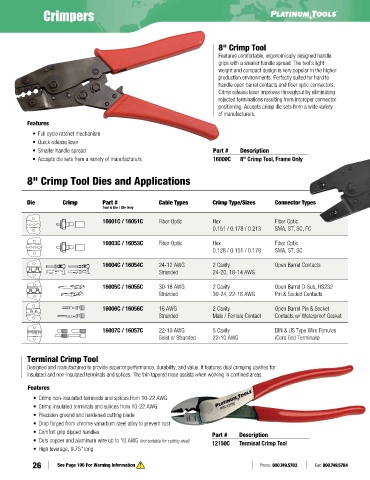

Crimpers

8" Crimp Tool
Features comfortable, ergonomically designed handle
grips with a smaller handle spread. The tool’s light
weight and compact design is very popular in the higher
production environments. Perfectly suited for hard to
handle open barrel contacts and fiber optic connectors.
Crimp release lever improves throughput by eliminating
rejected terminations resulting from improper connector
positioning. Accepts crimp die sets from a wide variety
of manufacturers.
Features
• Full cycle ratchet mechanism
• Quick release lever

• Smaller handle spread Part # Description

• Accepts die sets from a variety of manufacturers 16000C 8" Crimp Tool, Frame Only

8" Crimp Tool Dies and Applications

Die Crimp Part # Cable Types Crimp Type/Sizes Connector Types
Tool & Die / Die Only

16001C / 16051C Fiber Optic Hex Fiber Optic
0.151 / 0.178 / 0.213 SMA, ST, SC, FC

16003C / 16053C Fiber Optic Hex Fiber Optic
0.128 / 0.151 / 0.178 SMA, ST, SC

16004C / 16054C 24-12 AWG 2 Cavity Open Barrel Contacts
Stranded 24-20, 18-14 AWG

16005C / 16055C 30-18 AWG 2 Cavity Open Barrel D-Sub, RS232
Stranded 30-24, 22-18 AWG Pin & Socket Contacts

16006C / 16056C 16 AWG 2 Cavity Open Barrel Pin & Socket
Stranded Male / Female Contact Contacts w/ Waterproof Gasket

16007C / 16057C 22-10 AWG 5 Cavity DIN & US Type Wire Ferrules
Solid or Stranded 22-10 AWG (Cord End Terminals)

Terminal Crimp Tool
Designed and manufactured to provide superior performance, durability, and value. It features dual crimping cavities for
insulated and non-insulated terminals and splices. The thin tapered nose assists when working in confined areas.

Features
• Crimp non-insulated terminals and splices from 10-22 AWG
• Crimp insulated terminals and splices from 10-22 AWG

• Precision ground and hardened cutting blade
• Drop forged from chrome vanadium steel alloy to prevent rust

• Comfort grip dipped handles Part # Description
• Cuts copper and aluminum wire up to 10 AWG (not suitable for cutting steel) 12150C Terminal Crimp Tool
• High leverage, 9.75" long
