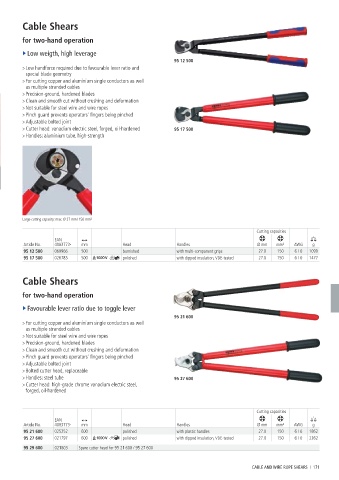

Page 171 - 凯尼派克英文通用样本2024knipex

Cable Shears

for two-hand operation

► Low weigth, high leverage
95 12 500
> Low handforce required due to favourable lever ratio and
special blade geometry
> For cutting copper and aluminium single conductors as well
as multiple stranded cables
> Precision-ground, hardened blades
> Clean and smooth cut without crushing and deformation
> Not suitable for steel wire and wire ropes
> Pinch guard prevents operators' fingers being pinched
> Adjustable bolted joint
> Cutter head: vanadium electric steel, forged, oil-hardened 95 17 500
> Handles: aluminium tube, high-strength

Large cutting capacity: max. Ø 27 mm / 150 mm²
Cutting capacities
EAN
Article No. 4003773- mm Head Handles Ø mm mm² AWG g
95 12 500 069966 500 burnished with multi-component grips 27.0 150 6 / 0 1090
95 17 500 026785 500 polished with dipped insulation, VDE-tested 27.0 150 6 / 0 1477

Cable Shears

for two-hand operation

► Favourable lever ratio due to toggle lever
95 21 600
> For cutting copper and aluminium single conductors as well
as multiple stranded cables
> Not suitable for steel wire and wire ropes
> Precision-ground, hardened blades
> Clean and smooth cut without crushing and deformation
> Pinch guard prevents operators' fingers being pinched
> Adjustable bolted joint
> Bolted cutter head, replaceable
> Handles: steel tube 95 27 600
> Cutter head: high-grade chrome vanadium electric steel,
forged, oil-hardened

Cutting capacities
EAN
Article No. 4003773- mm Head Handles Ø mm mm² AWG g
95 21 600 025252 600 polished with plastic handles 27.0 150 6 / 0 1862
95 27 600 021797 600 polished with dipped insulation, VDE-tested 27.0 150 6 / 0 2262

95 29 600 021803 Spare cutter head for 95 21 600 / 95 27 600

CABLE AND WIRE ROPE SHEARS I 171
