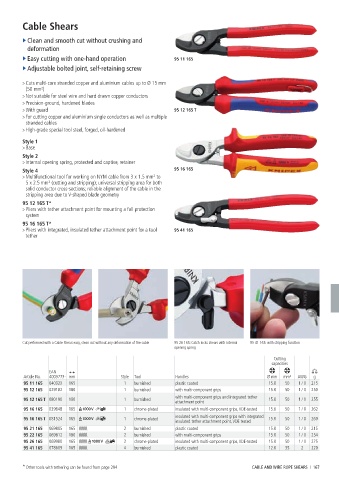

Cable Shears

► Clean and smooth cut without crushing and
deformation
► Easy cutting with one-hand operation 95 11 165
► Adjustable bolted joint, self-retaining screw

> Cuts multi-core stranded copper and aluminium cables up to Ø 15 mm
(50 mm²)
> Not suitable for steel wire and hard drawn copper conductors
> Precision-ground, hardened blades
> With guard 95 12 165 T
> For cutting copper and aluminium single conductors as well as multiple
stranded cables
> High-grade special tool steel, forged, oil-hardened
Style 1
> Base
Style 2
> Internal opening spring, protected and captive, retainer
Style 4 95 16 165
> Multifunctional tool for working on NYM cable from 3 x 1.5 mm² to
5 x 2.5 mm² (cutting and stripping); universal stripping area for both
solid conductor cross-sections; reliable alignment of the cable in the
stripping area due to V-shaped blade geometry
95 12 165 T*
> Pliers with tether attachment point for mounting a fall protection
system
95 16 165 T*
> Pliers with integrated, insulated tether attachment point for a tool 95 41 165
tether

Cut performed with a Cable Shear: easy, clean cut without any deformation of the cable 95 26 165: Catch locks shears with internal 95 41 165: with stripping function
opening spring
Cutting
capacities
EAN
Article No. 4003773- mm Style Tool Handles Ø mm mm² AWG g
95 11 165 040323 165 1 burnished plastic coated 15.0 50 1 / 0 215
95 12 165 029182 180 1 burnished with multi-component grips 15.0 50 1 / 0 250
95 12 165 T 080190 180 1 burnished with multi-component grips and integrated tether 15.0 50 1 / 0 255
attachment point
95 16 165 039648 165 1 chrome-plated insulated with multi-component grips, VDE-tested 15.0 50 1 / 0 262
95 16 165 T 081524 165 1 chrome-plated insulated with multi-component grips with integrated 15.0 50 1 / 0 260
insulated tether attachment point, VDE tested
95 21 165 069805 165 2 burnished plastic coated 15.0 50 1 / 0 215
95 22 165 069812 180 2 burnished with multi-component grips 15.0 50 1 / 0 254
95 26 165 069980 165 2 chrome-plated insulated with multi-component grips, VDE-tested 15.0 50 1 / 0 275
95 41 165 078609 165 4 burnished plastic coated 12.0 35 2 220

* Other tools with tethering can be found from page 294 CABLE AND WIRE ROPE SHEARS I 167
