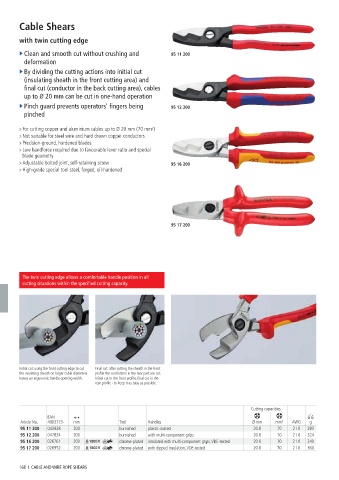

Cable Shears

with twin cutting edge

► Clean and smooth cut without crushing and 95 11 200
deformation
► By dividing the cutting actions into initial cut
(insulating sheath in the front cutting area) and
final cut (conductor in the back cutting area), cables
up to Ø 20 mm can be cut in one-hand operation
► Pinch guard prevents operators' fingers being 95 12 200
pinched

> For cutting copper and aluminium cables up to Ø 20 mm (70 mm²)
> Not suitable for steel wire and hard drawn copper conductors
> Precision-ground, hardened blades
> Low handforce required due to favourable lever ratio and special
blade geometry
> Adjustable bolted joint, self-retaining screw 95 16 200
> High-grade special tool steel, forged, oil-hardened

95 17 200

The twin cutting edge allows a comfortable handle position in all
cutting situations within the specified cutting capacity.

Initial cut: using the front cutting edge to cut Final cut: after cutting the sheath in the front
the insulating sheath on larger cable diameters profile the conductors in the rear part are cut.
leaves an ergonomic handle opening width. Initial cut in the front profile, final cut in the
rear profile - to keep it as easy as possible.

Cutting capacities
EAN
Article No. 4003773- mm Tool Handles Ø mm mm² AWG g
95 11 200 043928 200 burnished plastic coated 20.0 70 2 / 0 283
95 12 200 047834 200 burnished with multi-component grips 20.0 70 2 / 0 324
95 16 200 026761 200 chrome-plated insulated with multi-component grips, VDE-tested 20.0 70 2 / 0 340
95 17 200 026952 200 chrome-plated with dipped insulation, VDE-tested 20.0 70 2 / 0 360

168 I CABLE AND WIRE ROPE SHEARS
