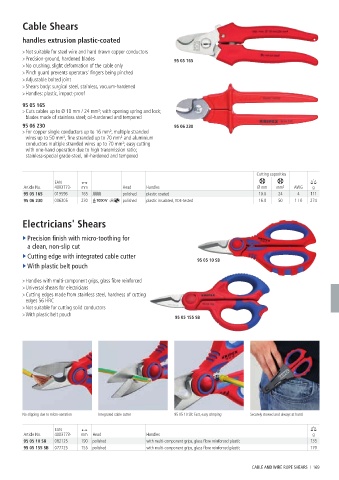

Cable Shears

handles extrusion plastic-coated

> Not suitable for steel wire and hard drawn copper conductors
> Precision-ground, hardened blades 95 05 165
> No crushing, slight deformation of the cable only
> Pinch guard prevents operators' fingers being pinched
> Adjustable bolted joint
> Shears body: surgical steel, stainless, vacuum-hardened
> Handles: plastic, impact-proof
95 05 165
> Cuts cables up to Ø 10 mm / 24 mm²; with opening spring and lock;
blades made of stainless steel; oil-hardened and tempered
95 06 230 95 06 230
> For copper single conductors up to 16 mm², multiple stranded
wires up to 50 mm², fine stranded up to 70 mm² and aluminium
conductors multiple stranded wires up to 70 mm²; easy cutting
with one-hand operation due to high transmission ratio;
stainless-special grade-steel, oil-hardened and tempered

Cutting capacities
EAN
Article No. 4003773- mm Head Handles Ø mm mm² AWG g
95 05 165 019596 165 polished plastic coated 10.0 24 4 111
95 06 230 006305 230 polished plastic insulated, VDE-tested 16.0 50 1 / 0 274

Electricians' Shears

► Precision finish with micro-toothing for
a clean, non-slip cut
► Cutting edge with integrated cable cutter
95 05 10 SB
► With plastic belt pouch

> Handles with multi-component grips, glass fibre reinforced
> Universal shears for electricians
> Cutting edges made from stainless steel, hardness of cutting
edges 56 HRC
> Not suitable for cutting solid conductors
> With plastic belt pouch
95 05 155 SB

No slipping due to micro-serration Integrated cable cutter 95 05 10 SB: Fast, easy crimping Securely stowed and always at hand

EAN
Article No. 4003773- mm Head Handles g
95 05 10 SB 082125 190 polished with multi-component grips, glass fibre reinforced plastic 135
95 05 155 SB 077725 155 polished with multi-component grips, glass fibre reinforced plastic 170

CABLE AND WIRE ROPE SHEARS I 169
