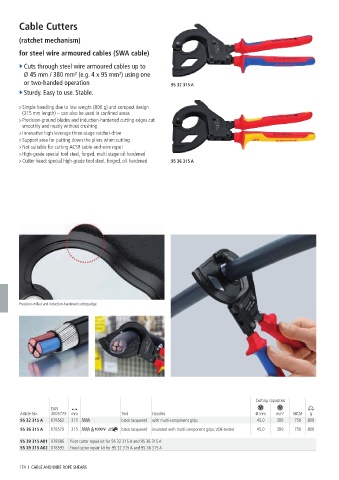

Page 174 - 凯尼派克英文通用样本2024knipex

Cable Cutters

(ratchet mechanism)

for steel wire armoured cables (SWA cable)

► Cuts through steel wire armoured cables up to
Ø 45 mm / 380 mm² (e.g. 4 x 95 mm²) using one
or two-handed operation 95 32 315 A

► Sturdy. Easy to use. Stable.

> Simple handling due to low weight (800 g) and compact design
(315 mm length) – can also be used in confined areas
> Precision-ground blades and induction-hardened cutting edges cut
smoothly and neatly without crushing
> Innovative high leverage three-stage ratchet-drive
> Support area for putting down the pliers when cutting
> Not suitable for cutting ACSR cable and wire rope!
> High-grade special tool steel, forged, multi stage oil-hardened
> Cutter head: special high-grade tool steel, forged, oil-hardened 95 36 315 A

Precision-milled and induction-hardened cutting edge

Cutting capacities
EAN
Article No. 4003773- mm Tool Handles Ø mm mm² MCM g
95 32 315 A 078562 315 black lacquered with multi-component grips 45.0 380 750 800
95 36 315 A 078579 315 black lacquered insulated with multi-component grips, VDE-tested 45.0 380 750 800
95 39 315 A01 078586 Pivot cutter repair kit for 95 32 315 A and 95 36 315 A
95 39 315 A02 078593 Fixed cutter repair kit for 95 32 315 A and 95 36 315 A

174 I CABLE AND WIRE ROPE SHEARS
