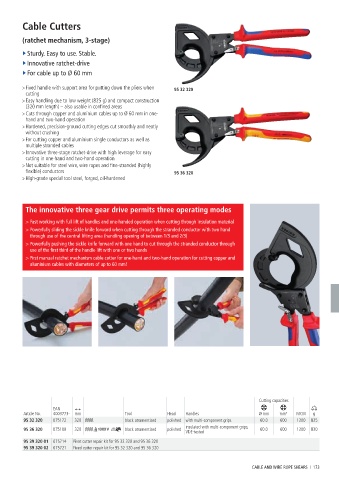

Cable Cutters

(ratchet mechanism, 3-stage)

► Sturdy. Easy to use. Stable.
► Innovative ratchet-drive
► For cable up to Ø 60 mm

> Fixed handle with support area for putting down the pliers when 95 32 320
cutting
> Easy handling due to low weight (825 g) and compact construction
(320 mm length) – also usable in confined areas
> Cuts through copper and aluminium cables up to Ø 60 mm in one-
hand and two-hand operation
> Hardened, precision-ground cutting edges cut smoothly and neatly
without crushing
> For cutting copper and aluminium single conductors as well as
multiple stranded cables
> Innovative three-stage ratchet-drive with high leverage for easy
cutting in one-hand and two-hand operation
> Not suitable for steel wire, wire ropes and fine-stranded (highly
flexible) conductors 95 36 320
> High-grade special tool steel, forged, oil-hardened

The innovative three gear drive permits three operating modes

> Fast working with full lift of handles and one-handed operation when cutting through insulation material
> Powerfully sliding the sickle knife forward when cutting through the stranded conductor with two hand
through use of the central lifting area (handling opening of between 1/3 and 2/3)
> Powerfully pushing the sickle knife forward with one hand to cut through the stranded conductor through
use of the first third of the handle lift with one or two hands
> First manual ratchet mechanism cable cutter for one-hand and two-hand operation for cutting copper and
aluminium cables with diameters of up to 60 mm!

Cutting capacities
EAN
Article No. 4003773- mm Tool Head Handles Ø mm mm² MCM g
95 32 320 075172 320 black atramentized polished with multi-component grips 60.0 600 1200 825
insulated with multi-component grips,
95 36 320 075189 320 black atramentized polished VDE-tested 60.0 600 1200 830
95 39 320 01 075714 Pivot cutter repair kit for 95 32 320 and 95 36 320
95 39 320 02 075721 Fixed cutter repair kit for 95 32 320 and 95 36 320

CABLE AND WIRE ROPE SHEARS I 173
