P. 175

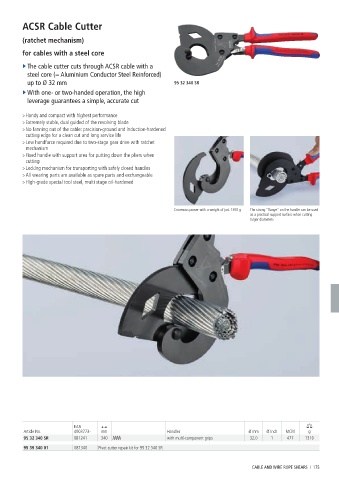

ACSR Cable Cutter

         (ratchet mechanism)

         for cables with a steel core

         ► The cable cutter cuts through ACSR cable with a
           steel core (= Aluminium Conductor Steel Reinforced)
           up to Ø 32 mm                                      95 32 340 SR
         ► With one- or two-handed operation, the high

           leverage guarantees a simple, accurate cut

         > Handy and compact with highest performance
         > Extremely stable, dual guided of the revolving blade
         > No fanning out of the cable: precision-ground and induction-hardened
          cutting edge for a clean cut and long service life
         > Low handforce required due to two-stage gear drive with ratchet
          mechanism
         > Fixed handle with support area for putting down the pliers when
          cutting
         > Locking mechanism for transporting with safely closed handles
         > All wearing parts are available as spare parts and exchangeable
         > High-grade special tool steel, multi stage oil-hardened




                                                              Enormous power with a weight of just 1300 g  The strong “flange” on the handle can be used
                                                                                         as a practical support surface when cutting
                                                                                         larger diameters











































                           EAN
         Article No.       4003773-  mm                     Handles                     Ø mm   Ø Inch  MCM   g
         95 32 340 SR      081241    340                    with multi-component grips   32.0   1     477   1310

         95 39 340 01      081340   Pivot cutter repair kit for 95 32 340 SR


                                                                                          CABLE AND WIRE ROPE SHEARS   I  175
