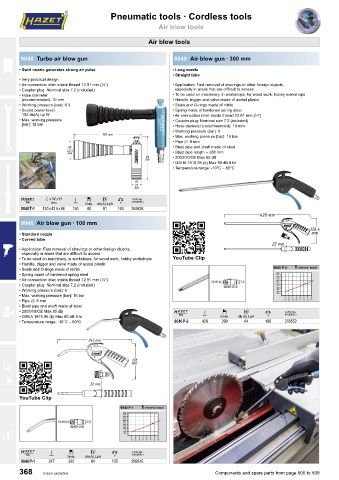

Page 370 - HAZET哈蔡特2024英文样本

Pneumatic tools ∙ Cordless tools Pneumatic tools ∙ Cordless tools

Air blow tools Air blow tools

Air blow tools

9040 Turbo air blow gun 9040 Air blow gun ∙ 300 mm

• Swirl nozzle generates strong air pulse • Long nozzle
• Straight tube
• Very practical design
1
• Air connection inlet: inside thread 12.91 mm ( ⁄4″) • Application: Fast removal of shavings or other foreign objects,
• Coupler plug: Nominal size 7.2 (included) especially in areas that are difficult to access
• Hose diameter • To be used on machinery, in workshops, for wood work, hobby workshops
(recommended): 10 mm • Handle, trigger and valve made of acetal plastic
• Working pressure (bar): 6.3 • Seals and O-rings made of nitrile
• Sound power level: • Spring made of hardened spring steel
102 db(A) Lp W • Air connection inlet: inside thread 12.91 mm ( ⁄4″)
1
• Max. working pressure • Coupler plug: Nominal size 7.2 (included)
[bar]: 12 bar • Hose diameter (recommended): 10 mm
• Working pressure (bar): 6
• Max. working pressure [bar]: 16 bar
• Pipe x: 8 mm
• Blast pipe and shaft made of steel
• Blast pipe length ~ 280 mm
• 2003/10/CE Max 85 dB
• OSHA 1910.95 (b) Max 90 dB 8 hr
• Temperature range: -10°C – 80°C

1 L x W x H K l/min. db (A) LpA 5 4
N
?
mm
9040 T-1 150 x 42.5 x 96 150 80 91 163 252626
9040 Air blow gun ∙ 100 mm

• Standard nozzle
• Curved tube
• Application: Fast removal of shavings or other foreign objects,
especially in areas that are difficult to access
• To be used on machinery, in workshops, for wood work, hobby workshops YouTube Clip
• Handle, trigger and valve made of acetal plastic
• Seals and O-rings made of nitrile
• Spring made of hardened spring steel
1
• Air connection inlet: inside thread 12.91 mm ( ⁄4″)
• Coupler plug: Nominal size 7.2 (included)
• Working pressure (bar): 6
• Max. working pressure [bar]: 16 bar
• Pipe x: 8 mm
• Blast pipe and shaft made of steel
• 2003/10/CE Max 85 dB 1 K ? N 5 4
• OSHA 1910.95 (b) Max 90 dB 8 hr l/min. db (A) LpA
• Temperature range: -10°C – 80°C 9040 P-2 420 290 84 190 209552

YouTube Clip

1 K l/min. db (A) LpA 5 4
N
?
9040 P-1 247 290 84 105 209545
368 Errors excepted Components and spare parts from page 500 to 509
