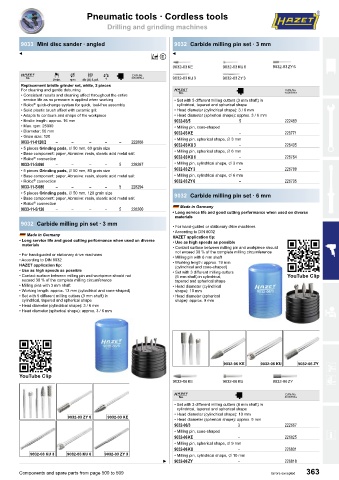

Page 365 - HAZET哈蔡特2024英文样本

Pneumatic tools ∙ Cordless tools

Drilling and grinding machines

9033 Mini disc sander ∙ angled 9032 Carbide milling pin set ∙ 3 mm
C C C
A/
9032-03 KE 9032-03 KU 6 9032-03 ZY 6
1 l/min. rpm db (A) LpA 5 è 4 9032-03 KU 3 9032-03 ZY 3
?
^
N
Replacement bristle grinder set, white, 2 pieces
For cleaning and gentle deburring 1 è 4
• Consistent results and cleaning effect throughout the entire
service life as no pressure is applied when working • Set with 5 different milling cutters (3 mm shaft) in
• Roloc quick-change system for quick, tool-free assembly cylindrical, tapered and spherical shape
®
• Solid plastic brush offset with ceramic grit • Head diameter (cylindrical shape): 3 / 6 mm
• Adapts to contours and shape of the workpiece • Head diameter (spherical shape): approx. 3 / 6 mm
• Bristle length: approx. 16 mm 9032-03/5 5 222483
• Max. rpm: 25000 • Milling pin, cone-shaped
• Diameter: 50 mm 9032-03 KE – 226771
• Grain size: 120 • Milling pin, spherical shape, x 3 mm
9033-11-0120/2 – – – – – 222858 9032-03 KU 3 – 226405
• 5 pieces Grinding pads, x 50 mm, 60 grain size • Milling pin, spherical shape, x 6 mm
• Base component: paper, Abrasive: resin, stearic acid metal salt
®
• Roloc connection 9032-03 KU 6 – 226764
9033-11-S 060 – – – – 5 228287 • Milling pin, cylindrical shape, x 3 mm
• 5 pieces Grinding pads, x 50 mm, 80 grain size 9032-03 ZY 3 – 226788
• Base component: paper, Abrasive: resin, stearic acid metal salt • Milling pin, cylindrical shape, x 6 mm
• Roloc connection 9032-03 ZY 6 – 226795
®
9033-11-S 080 – – – – 5 228294
• 5 pieces Grinding pads, x 50 mm, 120 grain size 9032 Carbide milling pin set ∙ 6 mm
• Base component: paper, Abrasive: resin, stearic acid metal salt
• Roloc connection
®
9033-11-S 120 – – – – 5 228300 Made in Germany
• Long service life and good cutting performance when used on diverse
materials
9032 Carbide milling pin set ∙ 3 mm
• For hand-guided or stationary drive machines
• According to DIN 8032
Made in Germany HAZET application tip:
• Long service life and good cutting performance when used on diverse • Use as high speeds as possible
materials
• Contact surface between milling pin and workpiece should
not exceed 30 % of the complete milling circumference
• For hand-guided or stationary drive machines • Milling pin with 6 mm shaft
• According to DIN 8032
HAZET application tip: • Working length: approx. 19 mm
(cylindrical and cone-shaped)
• Use as high speeds as possible • Set with 3 different milling cutters
• Contact surface between milling pin and workpiece should not (6 mm shaft) in cylindrical, YouTube Clip
exceed 30 % of the complete milling circumference tapered and spherical shape
• Milling pins with 3 mm shaft • Head diameter (cylindrical
• Working length: approx. 13 mm (cylindrical and cone-shaped) shape): 10 mm
• Set with 5 different milling cutters (3 mm shaft) in • Head diameter (spherical
cylindrical, tapered and spherical shape shape): approx. 9 mm
• Head diameter (cylindrical shape): 3 / 6 mm
• Head diameter (spherical shape): approx. 3 / 6 mm

9032-06 KE 9032-06 KU 9032-06 ZY

YouTube Clip
9032-06 KE 9032-06 KU 9032-06 ZY

1 è 4
• Set with 3 different milling cutters (6 mm shaft) in
cylindrical, tapered and spherical shape
• Head diameter (cylindrical shape): 10 mm
9032-03 ZY 6 9032-03 KE
• Head diameter (spherical shape): approx. 9 mm
9032-06/3 3 222667
• Milling pin, cone-shaped
9032-06 KE – 226825
• Milling pin, spherical shape, x 9 mm
9032-06 KU – 226801
9032-03 KU 3 9032-03 KU 6 9032-03 ZY 3 • Milling pin, cylindrical shape, x 10 mm
B 9032-06 ZY – 226818

Components and spare parts from page 500 to 509 Errors excepted 363
