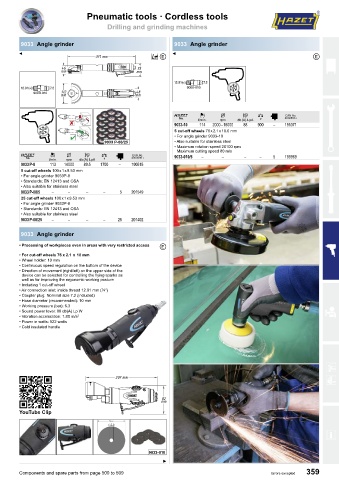

Page 361 - HAZET哈蔡特2024英文样本

Pneumatic tools ∙ Cordless tools

Drilling and grinding machines

9033 Angle grinder 9033 Angle grinder
C C
A/ /

1 l/min. rpm db (A) LpA 5 è 4
?
^
N
9033-10 114 2000 – 18000 88 900 – 196371
5 cut-off wheels 76 x 2.1 x 10.0 mm
• For angle grinder 9033-10
• Also suitable for stainless steel
9033 P-08/25
• Maximum rotation speed 20100 rpm
Maximum cutting speed 80 m/s
1 ? ^ N 5 è 4 9033-010/5 – – – – 5 199969
rpm
113
9033 P-8 l/min. 14000 db (A) LpA 1700 – 190515
89.5
5 cut-off wheels 100 x 1 x 9.53 mm
• For angle grinder 9033P-8
• Standards: EN 12413 and OSA
• Also suitable for stainless steel
9033 P-08/5 – – – – 5 201549
25 cut-off wheels 100 x 1 x 9.53 mm
• For angle grinder 9033P-8
• Standards: EN 12413 and OSA
• Also suitable for stainless steel
9033 P-08/25 – – – – 25 201402
9033 Angle grinder
• Processing of workpieces even in areas with very restricted access /
• For cut-off wheels 76 x 2.1 x 10 mm
• Wheel holder: 10 mm
• Continuous speed regulation on the bottom of the device
• Direction of movement (right/left) on the upper side of the
device can be selected for controlling the flying sparks as
well as for improving the ergonomic working posture
• Including 1 cut-off wheel
• Air connection inlet: inside thread 12.91 mm ( ⁄4″)
1
• Coupler plug: Nominal size 7.2 (included)
• Hose diameter (recommended): 10 mm
• Working pressure (bar): 6.3
• Sound power level: 88 db(A) Lp W
• Vibration acceleration: 1.80 m/s 2
• Power in watts: 522 watts
• Cold insulated handle

YouTube Clip

9033-010
B

Components and spare parts from page 500 to 509 Errors excepted 359
