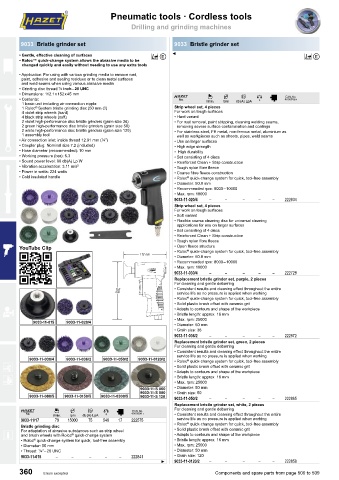

Page 362 - HAZET哈蔡特2024英文样本

Pneumatic tools ∙ Cordless tools Pneumatic tools ∙ Cordless tools

Drilling and grinding machines Drilling and grinding machines

9033 Bristle grinder set 9033 Bristle grinder set

• Gentle, effective cleaning of surfaces A/ C A/
• Roloc™ quick-change system allows the abrasive media to be
changed quickly and easily without needing to use any extra tools
• Application: For using with various grinding media to remove rust,
paint, adhesive and sealing residues or to clean metal surfaces
and weld seams when using various abrasive media
• Grinding disc thread ⁄4 inch – 20 UNC
1
• Dimensions: 112.1 x 152 x 45 mm 1 5
N
?
^
• Contents: l/min. rpm db (A) LpA è 4
1 basic unit including air connection nipple
®
1 Roloc System bristle grinding disc (50 mm x) Strip wheel set, 4 pieces
4 violet strip wheels (hard) For work on tough surfaces
4 black strip wheels (soft) • Hard variant
2 violet high-performance disc bristle grinders (grain size 36) • For rust removal, paint stripping, cleaning welding seams,
2 green high-performance disc bristle grinders (grain size 50) removing severe surface contamination and coatings
2 white high-performance disc bristle grinders (grain size 120) • For stainless steel, FE metal, non-ferrous metal, aluminium as
1 assembly tool well as workpieces such as sheets, pipes, weld seams
• Air connection inlet: inside thread 12.91 mm ( ⁄4″) • Use on larger surfaces
1
• Coupler plug: Nominal size 7.2 (included) • High edge strength
• Hose diameter (recommended): 10 mm • High durability
• Working pressure (bar): 6.3 • Set consisting of 4 discs
• Sound power level: 86 db(A) Lp W • Reinforced Clean + Strip construction
• Vibration acceleration: 3.11 m/s 2 • Tough nylon fibre fleece
• Power in watts: 224 watts • Coarse fibre fleece construction
• Cold insulated handle • Roloc quick-change system for quick, tool-free assembly
®
• Diameter: 50.8 mm
• Recommended rpm: 8000 – 10000
• Max. rpm: 18000
9033-11-020/4 – – – – – 222834
Strip wheel set, 4 pieces
For work on tough surfaces
• Soft variant
• Flexible coarse cleaning disc for universal cleaning
applications for use on larger surfaces
• Set consisting of 4 discs
• Reinforced Clean + Strip construction
• Tough nylon fibre fleece
YouTube Clip • Open fleece structure
• Roloc quick-change system for quick, tool-free assembly
®
• Diameter: 50.8 mm
• Recommended rpm: 8000 – 10000
• Max. rpm: 18000
9033-11-030/4 – – – – – 222728
Replacement bristle grinder set, purple, 2 pieces
For cleaning and gentle deburring
• Consistent results and cleaning effect throughout the entire
service life as no pressure is applied when working
®
• Roloc quick-change system for quick, tool-free assembly
• Solid plastic brush offset with ceramic grit
• Adapts to contours and shape of the workpiece
• Bristle length: approx. 16 mm
• Max. rpm: 25000
9033-11-015 9033-11-020/4
• Diameter: 50 mm
• Grain size: 36
9033-11-036/2 – – – – – 222872
Replacement bristle grinder set, green, 2 pieces
For cleaning and gentle deburring
• Consistent results and cleaning effect throughout the entire
service life as no pressure is applied when working
9033-11-030/4 9033-11-036/2 9033-11-050/2 9033-11-0120/2 ®
• Roloc quick-change system for quick, tool-free assembly
• Solid plastic brush offset with ceramic grit
• Adapts to contours and shape of the workpiece
• Bristle length: approx. 16 mm
• Max. rpm: 25000
• Diameter: 50 mm
9033-11-S 060
9033-11-S 080 • Grain size: 50
9033-11-080/5 9033-11-0150/5 9033-11-0300/5 9033-11-S 120 9033-11-050/2 – – – – – 222865
Replacement bristle grinder set, white, 2 pieces
1 l/min. rpm db (A) LpA 5 è 4 For cleaning and gentle deburring
?
N
^
• Consistent results and cleaning effect throughout the entire
9033-11/17 79 15000 75 540 17 222575 service life as no pressure is applied when working
®
Bristle grinding disc • Roloc quick-change system for quick, tool-free assembly
For adaptation of abrasive substances such as strip wheel • Solid plastic brush offset with ceramic grit
and brush wheels with Roloc quick-change system • Adapts to contours and shape of the workpiece
®
®
• Roloc quick-change system for quick, tool-free assembly • Bristle length: approx. 16 mm
• Diameter: 50 mm • Max. rpm: 25000
1
• Thread: /4” – 20 UNC • Diameter: 50 mm
9033-11-015 – – – – – 222841 • Grain size: 120
B 9033-11-0120/2 – – – – – 222858
360 Errors excepted Components and spare parts from page 500 to 509
