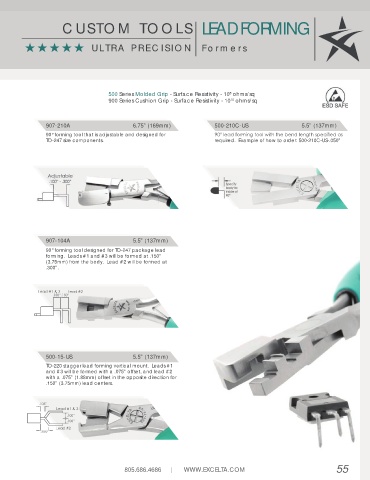

Page 55 - Excelta-2019-Catalog

CUSTOM TOOLS LEAD FORMING

HHHHH ULTRA PRECISION Formers

500 Series Molded Grip - Surface Resistivity - 10 ohms/sq
8
900 Series Cushion Grip - Surface Resistivity - 10 ohms/sq
10

907-210A 6.75” (169mm) 500-210C-US 5.5” (137mm)
90° forming tool that is adjustable and designed for 90° lead forming tool with the bend length specifi ed as
TO-247 size components. required. Example of how to order: 500-210C-US-.050”

907-104A 5.5” (137mm)
90° forming tool designed for TO-247 package lead
forming. Leads #1 and #3 will be formed at .150”
(3.75mm) from the body. Lead #2 will be formed at
.300”.

500-15-US 5.5” (137mm)
TO-220 stagger lead forming vertical mount. Leads #1
and #3 will be formed with a .075” offset, and lead #2
with a .075” (1.88mm) offset in the opposite direction for
.150” (3.75mm) lead centers.

55
