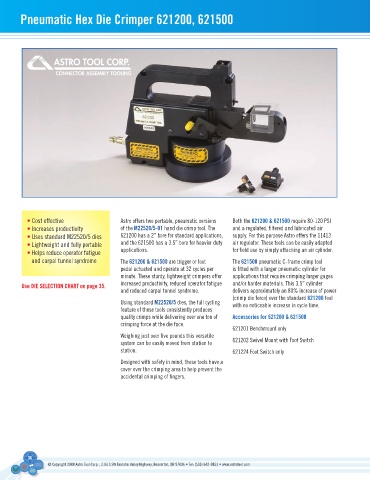

Pneumatic Hex Die Crimper 621200, 621500
• Cost effective Astro offers two portable, pneumatic versions Both the 621200 & 621500 require 80-120 PSI
• Increases productivity of the M22520/5-01 hand die crimp tool. The and a regulated, filtered and lubricated air
• Uses standard M22520/5 dies 621200 has a 2’’ bore for standard applications, supply. For this purpose Astro offers the 11413
• Lightweight and fully portable and the 621500 has a 3.5’’ bore for heavier duty air regulator. These tools can be easily adapted
• Helps reduce operator fatigue applications. for field use by simply attaching an air cylinder.
and carpal tunnel syndrome The 621200 & 621500 are trigger or foot The 621500 pneumatic C-frame crimp tool
pedal actuated and operate at 32 cycles per is fitted with a larger pneumatic cylinder for
minute. These sturdy, lightweight crimpers offer applications that require crimping larger gages
use DIe seleCtIon CHaRt on page 35. increased productivity, reduced operator fatigue and/or harder materials. This 3.5” cylinder
and reduced carpal tunnel syndrome. delivers approximately an 80% increase of power
(crimp die force) over the standard 621200 tool
Using standard M22520/5 dies, the full cycling with no noticeable increase in cycle time.
feature of these tools consistently produces
quality crimps while delivering over one ton of accessories for 621200 & 621500
crimping force at the die face.
621201 Benchmount only
Weighing just over five pounds this versatile
system can be easily moved from station to 621202 Swivel Mount with Foot Switch
station. 621224 Foot Switch only
Designed with safety in mind, these tools have a
cover over the crimping area to help prevent the
accidental crimping of fingers.
