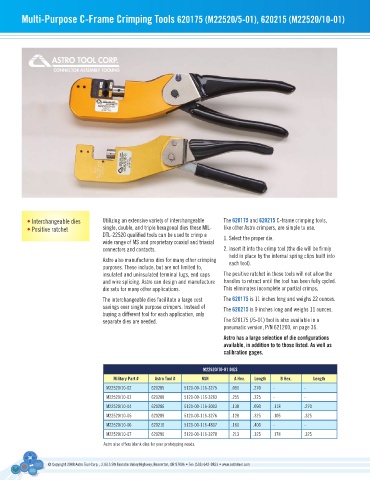

Multi-Purpose C-frame Crimping tools 620175 (M22520/5-01), 620215 (M22520/10-01)

• Interchangeable dies Utilizing an extensive variety of interchangeable The 620175 and 620215 C-frame crimping tools,
• Positive ratchet single, double, and triple hexagonal dies these MIL- like other Astro crimpers, are simple to use.
DTL-22520 qualified tools can be used to crimp a 1. Select the proper die.
wide range of MS and proprietary coaxial and triaxial
connectors and contacts. 2. Insert it into the crimp tool (the die will be firmly
held in place by the internal spring clips built into
Astro also manufactures dies for many other crimping each tool).
purposes. These include, but are not limited to,
insulated and uninsulated terminal lugs, end caps The positive ratchet in these tools will not allow the
and wire splicing. Astro can design and manufacture handles to retract until the tool has been fully cycled.
die sets for many other applications. This eliminates incomplete or partial crimps.
The interchangeable dies facilitate a large cost The 620175 is 11 inches long and weighs 22 ounces.
savings over single purpose crimpers. Instead of The 620215 is 9 inches long and weighs 11 ounces.
buying a different tool for each application, only
separate dies are needed. The 620175 (/5-01) tool is also available in a
pneumatic version, P/N 621200, on page 36.
astro has a large selection of die configurations
available, in addition to to those listed. as well as
calibration gages.

M22520/10-01 DIes
Military Part # astro tool # nsn a Hex. length b Hex. length
M22520/10-02 620285 5120-00-116-3275 .091 .270 - -
M22520/10-03 620288 5120-00-116-3283 .255 .325 - -
M22520/10-04 620286 5120-00-116-3003 .138 .090 .118 .270
M22520/10-05 620289 5120-00-116-3276 .128 .325 .105 .325
M22520/10-06 620216 5120-00-116-4807 .160 .400 - -
M22520/10-07 620290 5120-00-116-3278 .213 .325 .178 .325
Astro also offers blank dies for your prototyping needs.
