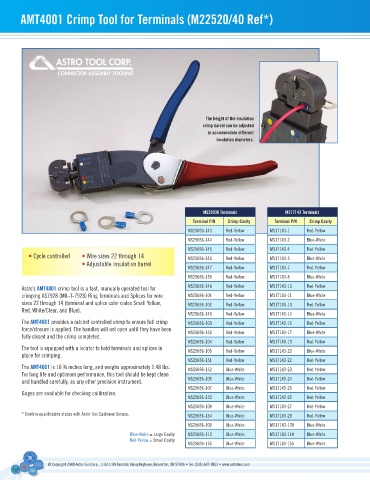

AMT4001 Crimp Tool for Terminals (M22520/40 Ref*)
The height of the insulation
crimp barrel can be adjusted
to accommodate different
insulation diameters.
MS25036 Terminals MS17143 Terminals
Terminal P/N Crimp Cavity Terminal P/N Crimp Cavity
MS25036-143 Red-Yellow MS17143-1 Red-Yellow
MS25036-144 Red-Yellow MS17143-2 Blue-White
MS25036-145 Red-Yellow MS17143-4 Red-Yellow
• Cycle controlled • Wire sizes 22 through 14 MS25036-146 Red-Yellow MS17143-5 Blue-White
• Adjustable insulation barrel
MS25036-147 Red-Yellow MS17143-7 Red-Yellow
MS25036-159 Red-Yellow MS17143-8 Blue-White
Astro’s AMT4001 crimp tool is a fast, manually operated tool for MS25036-148 Red-Yellow MS17143-10 Red-Yellow
crimping AS7928 (MIL-T-7928) Ring Terminals and Splices for wire MS25036-101 Red-Yellow MS17143-11 Blue-White
sizes 22 through 14 (terminal and splice color codes Small Yellow, MS25036-102 Red-Yellow MS17143-13 Red-Yellow
Red, White/Clear, and Blue).
MS25036-149 Red-Yellow MS17143-14 Blue-White
The AMT4001 provides a ratchet controlled crimp to ensure full crimp MS25036-103 Red-Yellow MS17143-16 Red-Yellow
force/closure is applied. The handles will not open until they have been MS25036-150 Red-Yellow MS17143-17 Blue-White
fully closed and the crimp completed.
MS25036-104 Red-Yellow MS17143-19 Red-Yellow
The tool is equipped with a locator to hold terminals and splices in MS25036-105 Red-Yellow MS17143-20 Blue-White
place for crimping.
MS25036-151 Red-Yellow MS17143-22 Red-Yellow
The AMT4001 is 10 ¾ inches long, and weighs approximately 1.48 lbs. MS25036-152 Blue-White MS17143-23 Red-Yellow
For long life and optimum performance, this tool should be kept clean
and handled carefully, as any other precision instrument. MS25036-106 Blue-White MS17143-24 Red-Yellow
MS25036-107 Blue-White MS17143-25 Red-Yellow
Gages are available for checking calibration.
MS25036-153 Blue-White MS17143-26 Red-Yellow
MS25036-108 Blue-White MS17143-27 Red-Yellow
* Confirm qualification status with Astro Tool Customer Service. MS25036-154 Blue-White MS17143-28 Red-Yellow
MS25036-109 Blue-White MS17143-109 Blue-White
Blue-White = Large Cavity MS25036-110 Blue-White MS17143-110 Blue-White
Red-Yellow = Small Cavity
MS25036-155 Blue-White MS17143-155 Blue-White
