P. 36

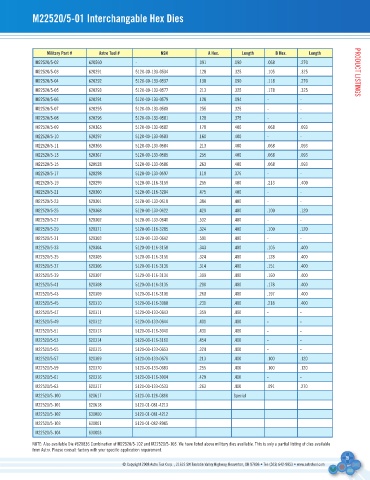

M22520/5-01 Interchangable Hex Dies
Military Part # astro tool # nsn a Hex. length b Hex. length
M22520/5-02 620560 - .091 .090 .068 .270
M22520/5-03 620291 5120-00-133-0534 .128 .325 .105 .325 PRODUCT LISTINGS
M22520/5-04 620292 5120-00-133-0537 .138 .090 .118 .270
M22520/5-05 620293 5120-00-133-0577 .213 .325 .178 .325
M22520/5-06 620294 5120-00-133-0579 .128 .094 - -
M22520/5-07 620295 5120-00-133-0580 .255 .325 - -
M22520/5-08 620296 5120-00-133-0581 .128 .375 - -
M22520/5-09 620365 5120-00-133-0582 .178 .400 .068 .093
M22520/5-10 620297 5120-00-133-0583 .160 .400 - -
M22520/5-11 620366 5120-00-133-0584 .213 .400 .068 .093
M22520/5-13 620367 5120-00-133-0585 .255 .400 .068 .093
M22520/5-15 620528 5120-00-133-0586 .263 .400 .068 .093
M22520/5-17 620298 5120-00-133-0597 .118 .375 - -
M22520/5-19 620299 5120-00-116-3159 .255 .400 .213 .400
M22520/5-21 620300 5120-00-116-3284 .475 .400 - -
M22520/5-23 620301 5120-00-133-0618 .384 .400 - -
M22520/5-25 620368 5120-00-133-0622 .429 .400 .100 .120
M22520/5-27 620302 5120-00-133-0640 .532 .400 - -
M22520/5-29 620371 5120-00-116-3285 .324 .400 .100 .120
M22520/5-31 620303 5120-00-133-0642 .501 .400 - -
M22520/5-33 620304 5120-00-116-3158 .343 .400 .105 .400
M22520/5-35 620305 5120-00-116-3156 .324 .400 .128 .400
M22520/5-37 620306 5120-00-116-3136 .314 .400 .151 .400
M22520/5-39 620307 5120-00-116-3134 .309 .400 .160 .400
M22520/5-41 620308 5120-00-116-3135 .290 .400 .178 .400
M22520/5-43 620309 5120-00-116-3106 .268 .400 .197 .400
M22520/5-45 620310 5120-00-116-3088 .231 .400 .218 .400
M22520/5-47 620311 5120-00-133-0643 .359 .400 - -
M22520/5-49 620312 5120-00-133-0644 .401 .400 - -
M22520/5-51 620313 5120-00-116-3040 .431 .400 - -
M22520/5-53 620314 5120-00-116-3160 .454 .400 - -
M22520/5-55 620315 5120-00-133-0653 .324 .400 - -
M22520/5-57 620369 5120-00-133-0676 .213 .400 .100 .120
M22520/5-59 620370 5120-00-133-0683 .255 .400 .100 .120
M22520/5-61 620316 5120-00-116-3004 .429 .400 - -
M22520/5-63 620317 5120-00-133-0533 .263 .400 .091 .270
M22520/5-100 620617 5120-00-126-0860 Special
M22520/5-101 620618 5120-01-081-4213
M22520/5-102 630000 5120-01-081-4212
M22520/5-103 630001 5120-01-082-8985
M22520/5-104 630003
Astro also offers blank dies for your prototyping needs. NOTe: Also available Die #620836 Combination of M22520/5-102 and M22520/5-103. We have listed above military dies available. This is only a partial listing of dies available
from Astro. Please consult factory with your specific application requirement.
