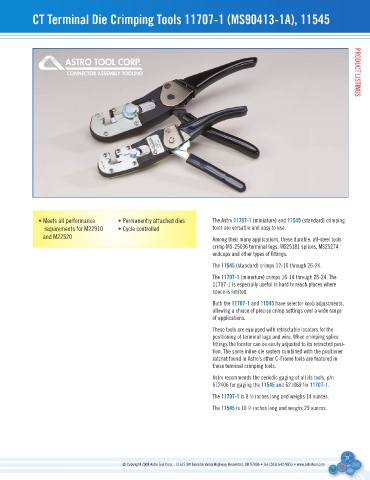

Ct terminal Die Crimping tools 11707-1 (Ms90413-1a), 11545 PRODUCT LISTINGS
• Meets all performance • Permanently attached dies The Astro 11707-1 (miniature) and 11545 (standard) crimping
requirements for M22910 • Cycle controlled tools are versatile and easy to use.
and M22520 Among their many applications, these durable, all-steel tools
crimp MS-25036 terminal lugs, MS25181 splices, MS25274
endcaps and other types of fittings.
The 11545 (standard) crimps 12-10 through 26-24.
The 11707-1 (miniature) crimps 16-14 through 26-24. The
11707-1 is especially useful in hard to reach places where
space is limited.
Both the 11707-1 and 11545 have selector knob adjustments,
allowing a choice of precise crimp settings over a wide range
of applications.
These tools are equipped with retractable locators for the
positioning of terminal lugs and wire. When crimping splice
fittings the locator can be easily adjusted to its retracted posi-
tion. The same inline die system combined with the positioner
ratchet found in Astro’s other C-Frame tools are featured in
these terminal crimping tools.
Astro recommends the periodic gaging of all its tools, p/n
612406 for gaging the 11545 and 621069 for 11707-1.
The 11707-1 is 8 ⁄2 inches long and weighs 14 ounces.
1
The 11545 is 10 ⁄2 inches long and weighs 29 ounces.
1
37
