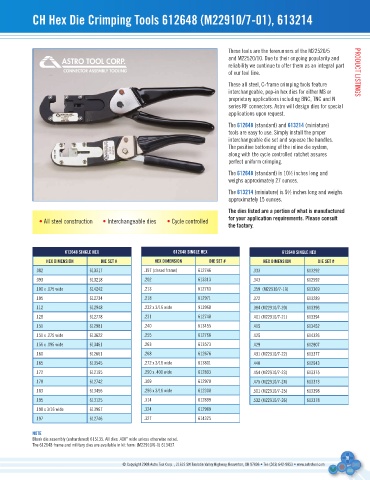

CH Hex Die Crimping tools 612648 (M22910/7-01), 613214

These tools are the forerunners of the M22520/5
and M22520/10. Due to their ongoing popularity and
reliability we continue to offer them as an integral part
of our tool line. PRODUCT LISTINGS

These all steel, C-frame crimping tools feature
interchangeable, pop-in hex dies for either MS or
proprietary applications including BNC, TNC and N
series RF connectors. Astro will design dies for special
applications upon request.
The 612648 (standard) and 613214 (miniature)
tools are easy to use. Simply install the proper
interchangeable die set and squeeze the handles.
The positive bottoming of the inline die system,
along with the cycle controlled ratchet assures
perfect uniform crimping.

The 612648 (standard) is 10 ⁄2 inches long and
1
weighs approximately 27 ounces.
The 613214 (miniature) is 9 ⁄2 inches long and weighs
1
approximately 15 ounces.
the dies listed are a portion of what is manufactured
• All steel construction • Interchangeable dies • Cycle controlled for your application requirements. Please consult
the factory.

612648 sInGle HeX 612648 sInGle HeX 612648 sInGle HeX
HeX DIMensIon DIe set # HeX DIMensIon DIe set # HeX DIMensIon DIe set #
.082 613317 .197 (closed frame) 612746 .333 613292
.093 613218 .202 613313 .343 612992
.100 x .175 wide 614242 .213 612763 .359 (M22910/7-19) 613369
.105 612734 .218 612971 .372 613289
.112 612948 .232 x 3/16 wide 913968 .384 (M22910/7-20) 613396
.128 612778 .231 612748 .401 (M22910/7-21) 613394
.151 612981 .240 613455 .415 613452
.151 x .275 wide 613622 .255 612766 .425 614326
.156 x .095 wide 613461 .263 613573 .429 612807
.160 612661 .268 612676 .431 (M22910/7-22) 613377
.165 613545 .272 x 3/16 wide 613801 .440 612943
.172 612195 .290 x .400 wide 612893 .454 (M22910/7-23) 613375
.178 612742 .309 612978 .475 (M22910/7-24) 613373
.183 613456 .296 x 3/16 wide 612308 .501 (M22910/7-25) 613398
.195 613125 .314 612899 .532 (M22910/7-26) 613378
.198 x 3/16 wide 613967 .324 612989
.197 612746 .327 614325

note
Blank die assembly (unhardened) 615135. All dies .400” wide unless otherwise noted.
The 612648 frame and military dies are available in kit form: (M22910/6-1) 613437.
