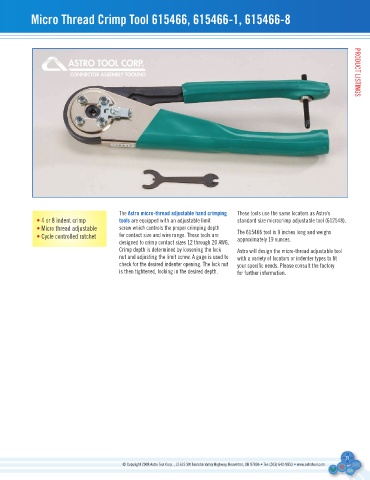

Metric Microcrimp tool 621205 Micro thread Crimp tool 615466, 615466-1, 615466-8 PRODUCT LISTINGS
The astro micro-thread adjustable hand crimping These tools use the same locators as Astro’s
• 4 or 8 indent crimp tools are equipped with an adjustable limit standard size microcrimp adjustable tool (612548).
• Micro thread adjustable screw which controls the proper crimping depth The 615466 tool is 9 inches long and weighs
• Cycle controlled ratchet for contact size and wire range. These tools are approximately 19 ounces.
designed to crimp contact sizes 12 through 20 AWG.
Crimp depth is determined by loosening the lock Astro will design the micro-thread adjustable tool
nut and adjusting the limit screw. A gage is used to with a variety of locators or indenter types to fit
check for the desired indenter opening. The lock nut your specific needs. Please consult the factory
is then tightened, locking in the desired depth. for further information.
