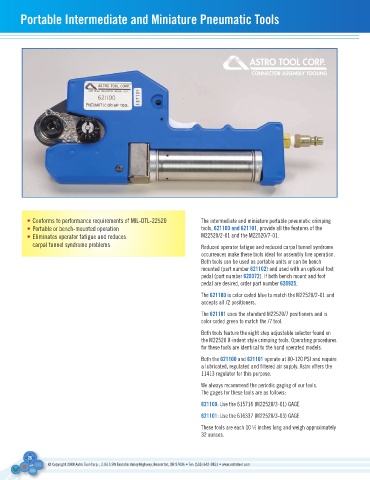

Portable Intermediate and Miniature Pneumatic tools
• Conforms to performance requirements of MIL-DTL-22520 The intermediate and miniature portable pneumatic crimping
• Portable or bench-mounted operation tools, 621100 and 621101, provide all the features of the
• eliminates operator fatigue and reduces M22520/2-01 and the M22520/7-01.
carpal tunnel syndrome problems Reduced operator fatigue and reduced carpal tunnel syndrome
occurrences make these tools ideal for assembly line operation.
Both tools can be used as portable units or can be bench
mounted (part number 621102) and used with an optional foot
pedal (part number 620372). If both bench mount and foot
pedal are desired, order part number 620925.
The 621100 is color coded blue to match the M22520/2-01 and
accepts all /2 positioners.
The 621101 uses the standard M22520/7 positioners and is
color coded green to match the /7 tool.
Both tools feature the eight step adjustable selector found on
the M22520 8-indent style crimping tools. Operating procedures
for these tools are identical to the hand operated models.
Both the 621100 and 621101 operate at 80-120 PSI and require
a lubricated, regulated and filtered air supply. Astro offers the
11413 regulator for this purpose.
We always recommend the periodic gaging of our tools.
The gages for these tools are as follows:
621100: Use the 615716 (M22520/3-01) GAGe
621101: Use the 616337 (M22520/3-03) GAGe
These tools are each 10 ⁄2 inches long and weigh approximately
1
32 ounces.
