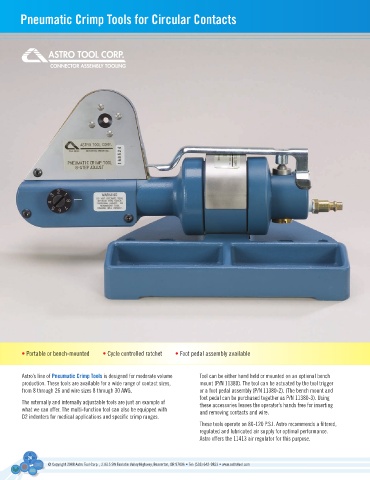

Pneumatic Crimp tools for Circular Contacts

• Portable or bench-mounted • Cycle controlled ratchet • Foot pedal assembly available

Astro’s line of Pneumatic Crimp tools is designed for moderate volume Tool can be either hand held or mounted on an optional bench
production. These tools are available for a wide range of contact sizes, mount (P/N 11380). The tool can be actuated by the tool trigger
from 8 through 26 and wire sizes 8 through 30 AWG. or a foot pedal assembly (P/N 11380-2). (The bench mount and
foot pedal can be purchased together as P/N 11380-3). Using
The externally and internally adjustable tools are just an example of these accessories leaves the operator’s hands free for inserting
what we can offer. The multi-function tool can also be equipped with and removing contacts and wire.
D2 indenters for medical applications and specific crimp ranges.
These tools operate on 80-120 P.S.I. Astro recommends a filtered,
regulated and lubricated air supply for optimal performance.
Astro offers the 11413 air regulator for this purpose.
