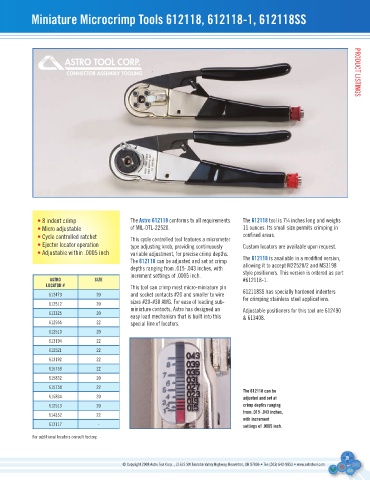

Miniature Microcrimp tools 612118, 612118-1, 612118ss PRODUCT LISTINGS

• 8 indent crimp The astro 612118 conforms to all requirements The 612118 tool is 7 ⁄4 inches long and weighs
1
• Micro adjustable of MIL-DTL-22520. 11 ounces. Its small size permits crimping in
• Cycle controlled ratchet This cycle controlled tool features a micrometer confined areas.
• ejector locator operation type adjusting knob, providing continuously Custom locators are available upon request.
• Adjustable within .0005 inch variable adjustment, for precise crimp depths.
The 612118 can be adjusted and set at crimp The 612118 is available in a modified version,
depths ranging from .015-.043 inches, with allowing it to accept M22520/2 and MS3198
increment settings of .0005 inch. style positioners. This version is ordered as part
astRo sIZe #612118-1.
loCatoR # This tool can crimp most micro-miniature pin
612473 20 and socket contacts #20 and smaller to wire 612118SS has specially hardened indenters
sizes #20-#30 AWG. For ease of loading sub- for crimping stainless steel applications.
612512 20
miniature contacts, Astro has designed an Adjustable positioners for this tool are 612490
613325 20
easy load mechanism that is built into this & 613408.
612955 22 special line of locators.
612510 20
613194 22
612521 22
613192 22
615759 22
615832 20
615758 22
the 612118 can be
615834 20 adjusted and set at
612513 20 crimp depths ranging
from .015-.043 inches,
614352 22
with increment
613117 - settings of .0005 inch.

For additional locators consult factory.

29
