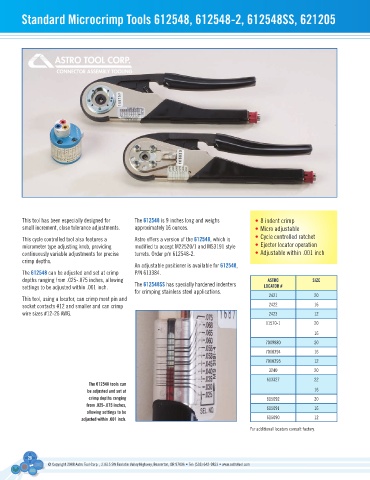

standard Microcrimp tools 612548, 612548-2, 612548ss, 621205

This tool has been especially designed for The 612548 is 9 inches long and weighs • 8 indent crimp
small increment, close tolerance adjustments. approximately 16 ounces. • Micro adjustable

This cycle controlled tool also features a Astro offers a version of the 612548, which is • Cycle controlled ratchet
micrometer type adjusting knob, providing modified to accept M22520/1 and MS3191 style • ejector locator operation
continuously variable adjustments for precise turrets. Order p/n 612548-2. • Adjustable within .001 inch
crimp depths.
An adjustable positioner is available for 612548,
The 612548 can be adjusted and set at crimp P/N 613384.
depths ranging from .025-.075 inches, allowing astRo sIZe
settings to be adjusted within .001 inch. The 612548ss has specially hardened indenters loCatoR #
for crimping stainless steel applications.
This tool, using a locator, can crimp most pin and 2421 20
socket contacts #12 and smaller and can crimp 2422 16
wire sizes #12-26 AWG. 2423 12
11570-1 20
16
7009880 20
7010394 16
7010395 12
3240 20
613327 22
the 612548 tools can
be adjusted and set at 16
crimp depths ranging 615092 20
from .025-.075 inches, 615091 16
allowing settings to be
adjusted within .001 inch. 615090 12

For additional locators consult factory.

28
