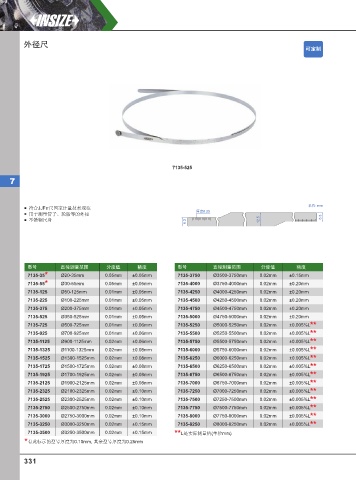

Page 340 - 英示测量INSIZE2025-v.66

外径尺
可定制

7135-525
7

符合JJFπ尺国家计量技术规范 单位: mm
厚度0.25
用于测量管子、轮胎等的外径 6.3
不锈钢尺身 6.3 12.5

型号 直径测量范围 分度值 精度 型号 直径测量范围 分度值 精度
7135-35 * Ø20-35mm 0.05mm ±0.05mm 7135-3750 Ø3500-3750mm 0.02mm ±0.15mm
7135-55* Ø30-55mm 0.05mm ±0.05mm 7135-4000 Ø3750-4000mm 0.02mm ±0.20mm
7135-125 Ø50-125mm 0.01mm ±0.05mm 7135-4250 Ø4000-4250mm 0.02mm ±0.20mm
7135-225 Ø100-225mm 0.01mm ±0.05mm 7135-4500 Ø4250-4500mm 0.02mm ±0.20mm
7135-375 Ø200-375mm 0.01mm ±0.05mm 7135-4750 Ø4500-4750mm 0.02mm ±0.20mm
7135-525 Ø350-525mm 0.01mm ±0.05mm 7135-5000 Ø4750-5000mm 0.02mm ±0.20mm
7135-725 Ø500-725mm 0.01mm ±0.06mm 7135-5250 Ø5000-5250mm 0.02mm ±0.005%L**
7135-925 Ø700-925mm 0.01mm ±0.06mm 7135-5500 Ø5250-5500mm 0.02mm ±0.005%L**
7135-1125 Ø900-1125mm 0.02mm ±0.06mm 7135-5750 Ø5500-5750mm 0.02mm ±0.005%L**
7135-1325 Ø1100-1325mm 0.02mm ±0.08mm 7135-6000 Ø5750-6000mm 0.02mm ±0.005%L **
7135-1525 Ø1300-1525mm 0.02mm ±0.08mm 7135-6250 Ø6000-6250mm 0.02mm ±0.005%L **
7135-1725 Ø1500-1725mm 0.02mm ±0.08mm 7135-6500 Ø6250-6500mm 0.02mm ±0.005%L **
**
7135-1925 Ø1700-1925mm 0.02mm ±0.08mm 7135-6750 Ø6500-6750mm 0.02mm ±0.005%L
7135-2125 Ø1900-2125mm 0.02mm ±0.08mm 7135-7000 Ø6750-7000mm 0.02mm ±0.005%L **
7135-2325 Ø2100-2325mm 0.02mm ±0.10mm 7135-7250 Ø7000-7250mm 0.02mm ±0.005%L **
7135-2525 Ø2300-2525mm 0.02mm ±0.10mm 7135-7500 Ø7250-7500mm 0.02mm ±0.005%L **
7135-2750 Ø2500-2750mm 0.02mm ±0.10mm 7135-7750 Ø7500-7750mm 0.02mm ±0.005%L **
**
7135-3000 Ø2750-3000mm 0.02mm ±0.10mm 7135-8000 Ø7750-8000mm 0.02mm ±0.005%L
7135-3250 Ø3000-3250mm 0.02mm ±0.15mm 7135-8250 Ø8000-8250mm 0.02mm ±0.005%L **
7135-3500 Ø3250-3500mm 0.02mm ±0.15mm ** L是实际测量值(单位mm)
* 有此标示的型号厚度为0.10mm, 其余型号厚度为0.25mm
