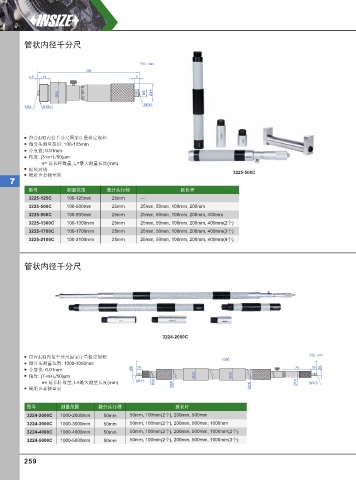

管状内径千分尺

单位: mm
100
1.5 11 5

Ø22 Ø8 Ø18
SR15
SR4 M18x1

符合JJG内径千分尺国家计量检定规程
微分头 测量范围: 100-125mm
分度值: 0.01mm
精度: (3+n+L/50)µm
n= 延长杆数量, L=最大测量长度(mm)
配校对规 3225-500C
硬质合金测量面
7
型号 测量范围 微分头行程 延长杆
3225-125C 100-125mm 25mm —
3225-500C 100-500mm 25mm 25mm, 50mm, 100mm, 200mm
3225-900C 100-900mm 25mm 25mm, 50mm, 100mm, 200mm, 400mm
3225-1300C 100-1300mm 25mm 25mm, 50mm, 100mm, 200mm, 400mm(2个)
3225-1700C 100-1700mm 25mm 25mm, 50mm, 100mm, 200mm, 400mm(3个)
3225-2100C 100-2100mm 25mm 25mm, 50mm, 100mm, 200mm, 400mm(4个)

管状内径千分尺

3224-2000C

符合JJG内径千分尺国家计量检定规程 单位: mm
1000
微分头 测量范围: 1000-1050mm
分度值: 0.01mm Ø8 15 75 15 Ø8
精度: (7+n+L/50)µm Ø33 Ø33
n= 延长杆数量, L=最大测量长度(mm) SR15 Ø20 Ø28 Ø18 SR15
硬质合金测量面 Ø28

型号 测量范围 微分头行程 延长杆
3224-2000C 1000-2000mm 50mm 50mm, 100mm(2个), 200mm, 500mm
3224-3000C 1000-3000mm 50mm 50mm, 100mm(2个), 200mm, 500mm, 1000mm
3224-4000C 1000-4000mm 50mm 50mm, 100mm(2个), 200mm, 500mm, 1000mm(2个)
3224-5000C 1000-5000mm 50mm 50mm, 100mm(2个), 200mm, 500mm, 1000mm(3个)
