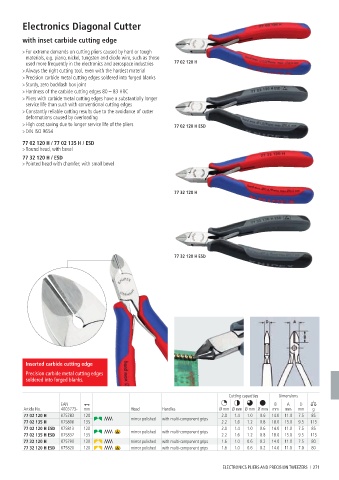

Electronics Diagonal Cutter

with inset carbide cutting edge

> For extreme demands on cutting pliers caused by hard or tough
materials, e.g. piano, nickel, tungsten and diode wire, such as those
used more frequently in the electronics and aerospace industries 77 02 120 H
> Always the right cutting tool, even with the hardest material
> Precision carbide metal cutting edges soldered into forged blanks
> Sturdy, zero backlash box joint
> Hardness of the carbide cutting edges 80 – 83 HRC
> Pliers with carbide metal cutting edges have a substantially longer
service life than such with conventional cutting edges
> Constantly reliable cutting results due to the avoidance of cutter
deformations caused by overloading
> High cost saving due to longer service life of the pliers 77 02 120 H ESD
> DIN ISO 9654

77 02 120 H / 77 02 135 H / ESD
> Round head, with bevel
77 32 120 H / ESD
> Pointed head with chamfer; with small bevel

77 32 120 H

77 32 120 H ESD

Inserted carbide cutting edge
Precision carbide metal cutting edges
soldered into forged blanks.

Cutting capacities Dimensions
EAN B A D
Article No. 4003773- mm Head Handles Ø mm Ø mm Ø mm Ø mm mm mm mm g
77 02 120 H 075783 120 2.0 1.4 1.0 0.6 14.0 11.0 7.5 85
77 02 135 H 075806 135 mirror polished with multi-component grips 2.2 1.6 1.2 0.8 18.0 15.0 9.5 115
77 02 120 H ESD 075813 120 mirror polished with multi-component grips 2.0 1.4 1.0 0.6 14.0 11.0 7.5 85
77 02 135 H ESD 075837 135 2.2 1.6 1.2 0.8 18.0 15.0 9.5 115
77 32 120 H 075790 120 mirror polished with multi-component grips 1.6 1.0 0.6 0.2 14.0 11.0 7.5 80
77 32 120 H ESD 075820 120 mirror polished with multi-component grips 1.6 1.0 0.6 0.2 14.0 11.0 7.0 80

ELECTRONICS PLIERS AND PRECISION TWEEZERS I 271
