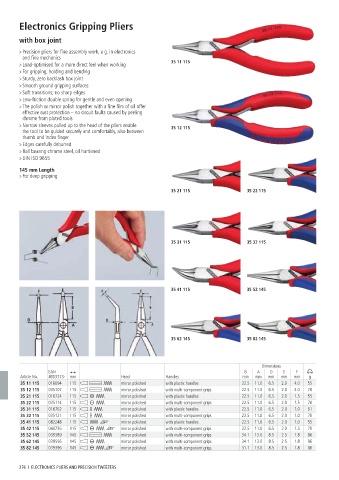

Page 276 - 凯尼派克英文通用样本2024knipex

Electronics Gripping Pliers

with box joint

> Precision pliers for fine assembly work, e g. in electronics
and fine mechanics
> Load-optimised for a more direct feel when working 35 11 115
> For gripping, holding and bending
> Sturdy, zero backlash box joint
> Smooth ground gripping surfaces
> Soft transitions; no sharp edges
> Low-friction double spring for gentle and even opening
> The polish or mirror polish together with a fine film of oil offer
effective rust protection – no circuit faults caused by peeling
chrome from plated tools
> Narrow sleeves pulled up to the head of the pliers enable 35 12 115
the tool to be guided securely and comfortably, also between
thumb and index finger
> Edges carefully deburred
> Ball bearing chrome steel, oil hardened
> DIN ISO 9655
145 mm Length
> For deep gripping

35 21 115 35 22 115

35 31 115 35 32 115

35 41 115 35 52 145

35 62 145 35 82 145

Dimensions
EAN B A D E F
Article No. 4003773- mm Head Handles mm mm mm mm mm g
35 11 115 016694 115 mirror polished with plastic handles 22.5 11.0 6.5 2.0 4.0 55
35 12 115 035107 115 mirror polished with multi-component grips 22.5 11.0 6.5 2.0 4.0 70
35 21 115 016724 115 mirror polished with plastic handles 22.5 11.0 6.5 2.0 1.5 55
35 22 115 035114 115 mirror polished with multi-component grips 22.5 11.0 6.5 2.0 1.5 70
35 31 115 016762 115 mirror polished with plastic handles 22.5 11.0 6.5 2.0 1.0 61
35 32 115 035121 115 mirror polished with multi-component grips 22.5 11.0 6.5 2.0 1.0 70
35 41 115 082248 115 45° mirror polished with plastic handles 22.5 11.0 6.5 2.0 1.0 55
35 42 115 040736 115 45° mirror polished with multi-component grips 22.5 11.0 6.5 2.0 1.5 70
35 52 145 039389 145 mirror polished with multi-component grips 34.1 13.0 8.5 2.5 1.8 86
35 62 145 039556 145 mirror polished with multi-component grips 34.1 13.0 8.5 2.5 1.8 86
35 82 145 039396 145 45° mirror polished with multi-component grips 31.1 13.0 8.5 2.5 1.8 86

276 I ELECTRONICS PLIERS AND PRECISION TWEEZERS
