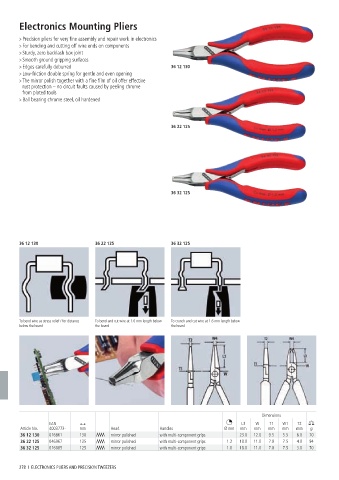

Electronics Mounting Pliers
> Precision pliers for very fine assembly and repair work in electronics
> For bending and cutting off wire ends on components
> Sturdy, zero backlash box joint
> Smooth ground gripping surfaces
> Edges carefully deburred 36 12 130
> Low-friction double spring for gentle and even opening
> The mirror polish together with a fine film of oil offer effective
rust protection – no circuit faults caused by peeling chrome
from plated tools
> Ball bearing chrome steel, oil hardened

36 22 125

36 32 125

36 12 130 36 22 125 36 32 125

To bend wire as stress relief / for distance To bend and cut wire at 1.6 mm length below To crunch and cut wire at 1.6 mm length below
below the board the board the board

Dimensions
EAN L3 W T1 W1 T2
Article No. 4003773- mm Head Handles Ø mm mm mm mm mm mm g
36 12 130 016861 130 mirror polished with multi-component grips 23.0 12.0 9.5 5.5 6.0 70
36 22 125 046967 125 mirror polished with multi-component grips 1.2 18.0 11.0 7.0 7.5 4.0 94
36 32 125 016885 125 mirror polished with multi-component grips 1.0 18.0 11.0 7.0 7.5 3.0 70

278 I ELECTRONICS PLIERS AND PRECISION TWEEZERS
