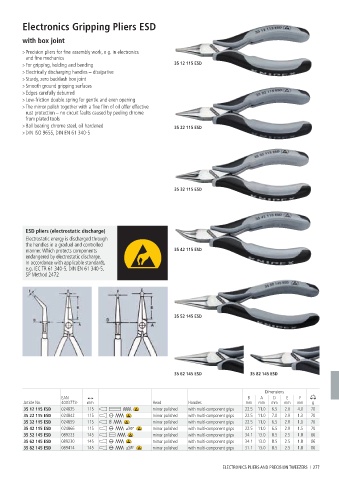

Electronics Gripping Pliers ESD

with box joint

> Precision pliers for fine assembly work, e g. in electronics
and fine mechanics
> For gripping, holding and bending 35 12 115 ESD
> Electrically discharging handles – dissipative
> Sturdy, zero backlash box joint
> Smooth ground gripping surfaces
> Edges carefully deburred
> Low-friction double spring for gentle and even opening
> The mirror polish together with a fine film of oil offer effective
rust protection – no circuit faults caused by peeling chrome
from plated tools
> Ball bearing chrome steel, oil hardened 35 22 115 ESD
> DIN ISO 9655, DIN EN 61 340-5

35 32 115 ESD

ESD pliers (electrostatic discharge)
Electrostatic energy is discharged through
the handles in a gradual and controlled
manner. Which protects components 35 42 115 ESD
endangered by electrostatic discharge.
In accordance with applicable standards,
e.g. IEC TR 61 340-5, DIN EN 61 340-5,
SP Method 2472

35 52 145 ESD

35 62 145 ESD 35 82 145 ESD

Dimensions
EAN B A D E F
Article No. 4003773- mm Head Handles mm mm mm mm mm g
35 12 115 ESD 024835 115 mirror polished with multi-component grips 22.5 11.0 6.5 2.0 4.0 70
35 22 115 ESD 024842 115 mirror polished with multi-component grips 22.5 11.0 7.0 2.0 1.3 70
35 32 115 ESD 024859 115 mirror polished with multi-component grips 22.5 11.0 6.5 2.0 1.0 70
35 42 115 ESD 024866 115 45° mirror polished with multi-component grips 22.5 11.0 6.5 2.0 1.5 70
35 52 145 ESD 089223 145 mirror polished with multi-component grips 34.1 13.0 8.5 2.5 1.8 86
35 62 145 ESD 089230 145 mirror polished with multi-component grips 34.1 13.0 8.5 2.5 1.8 86
35 82 145 ESD 089414 145 45° mirror polished with multi-component grips 31.1 13.0 8.5 2.5 1.8 86

ELECTRONICS PLIERS AND PRECISION TWEEZERS I 277
