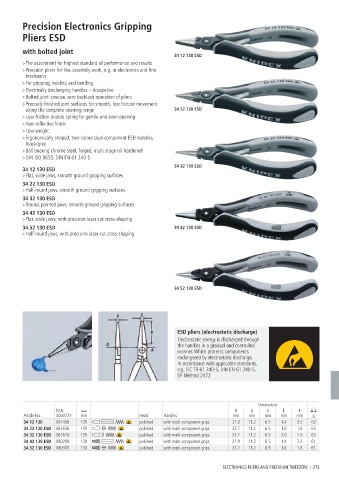

Page 275 - 凯尼派克英文通用样本2024knipex

Precision Electronics Gripping

Pliers ESD

with bolted joint
34 12 130 ESD
> The assortment for highest standard of performance and results
> Precision pliers for fine assembly work, e g. in electronics and fine
mechanics
> For gripping, holding and bending
> Electrically discharging handles – dissipative
> Bolted joint: precise, zero backlash operation of pliers
> Precisely finished joint surfaces for smooth, low friction movement
along the complete opening range 34 22 130 ESD
> Low-friction double spring for gentle and even opening
> Non-reflective finish
> Low weight
> Ergonomically shaped, two-colour dual component ESD handles,
black/grey
> Ball bearing chrome steel, forged, multi stage oil-hardened
> DIN ISO 9655, DIN EN 61 340-5
34 32 130 ESD
34 12 130 ESD
> Flat, wide jaws, smooth ground gripping surfaces
34 22 130 ESD
> Half-round jaws, smooth ground gripping surfaces
34 32 130 ESD
> Round, pointed jaws, smooth ground gripping surfaces
34 42 130 ESD
> Flat, wide jaws; with precision laser cut cross-shaping
34 52 130 ESD 34 42 130 ESD
> Half-round jaws; with precision laser cut cross-shaping

34 52 130 ESD

ESD pliers (electrostatic discharge)
Electrostatic energy is discharged through
the handles in a gradual and controlled
manner. Which protects components
endangered by electrostatic discharge.
In accordance with applicable standards,
e.g. IEC TR 61 340-5, DIN EN 61 340-5,
SP Method 2472

Dimensions
EAN B A D E F
Article No. 4003773- mm Head Handles mm mm mm mm mm g
34 12 130 061458 135 polished with multi-component grips 21.9 11.2 6.5 1.4 3.5 62
34 22 130 ESD 061656 135 polished with multi-component grips 22.7 11.2 6.5 1.6 1.6 65
34 32 130 ESD 061670 135 polished with multi-component grips 23.7 11.2 6.5 2.0 1.0 62
34 42 130 ESD 080299 130 polished with multi-component grips 21.9 11.2 6.5 1.4 3.5 61
34 52 130 ESD 080305 130 polished with multi-component grips 22.7 11.2 6.5 1.6 1.6 61

ELECTRONICS PLIERS AND PRECISION TWEEZERS I 275
