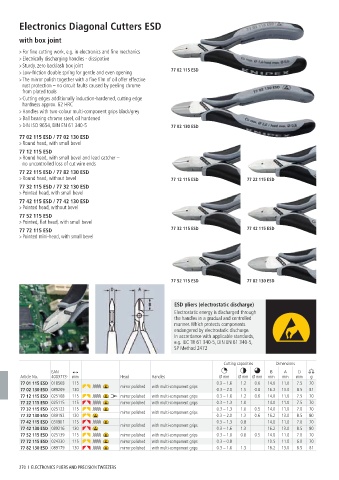

Electronics Diagonal Cutters ESD

with box joint

> For fine cutting work, e.g. in electronics and fine mechanics
> Electrically discharging handles - dissipative
> Sturdy, zero backlash box joint
> Low-friction double spring for gentle and even opening 77 02 115 ESD
> The mirror polish together with a fine film of oil offer effective
rust protection – no circuit faults caused by peeling chrome
from plated tools
> Cutting edges additionally induction-hardened, cutting edge
hardness approx. 62 HRC
> Handles with two-colour multi-component grips black/grey
> Ball bearing chrome steel, oil hardened
> DIN ISO 9654, DIN EN 61 340-5 77 02 130 ESD
77 02 115 ESD / 77 02 130 ESD
> Round head, with small bevel
77 12 115 ESD
> Round head, with small bevel and lead catcher –
no uncontrolled loss of cut wire ends
77 22 115 ESD / 77 82 130 ESD
> Round head, without bevel 77 12 115 ESD 77 22 115 ESD
77 32 115 ESD / 77 32 130 ESD
> Pointed head, with small bevel
77 42 115 ESD / 77 42 130 ESD
> Pointed head, without bevel
77 52 115 ESD
> Pointed, flat head, with small bevel
77 72 115 ESD 77 32 115 ESD 77 42 115 ESD
> Pointed mini-head, with small bevel

77 52 115 ESD 77 82 130 ESD

ESD pliers (electrostatic discharge)
Electrostatic energy is discharged through
the handles in a gradual and controlled
manner. Which protects components
endangered by electrostatic discharge.
In accordance with applicable standards,
e.g. IEC TR 61 340-5, DIN EN 61 340-5,
SP Method 2472

Cutting capacities Dimensions
EAN B A D
Article No. 4003773- mm Head Handles Ø mm Ø mm Ø mm mm mm mm g
77 01 115 ESD 018568 115 0.3 – 1.6 1.2 0.6 14.0 11.0 7.5 70
77 02 130 ESD 089209 130 mirror polished with multi-component grips 0.3 – 2.0 1.5 0.8 16.2 13.0 8.5 81
77 12 115 ESD 025108 115 mirror polished with multi-component grips 0.3 – 1.6 1.2 0.6 14.0 11.0 7.5 70
77 22 115 ESD 025115 115 mirror polished with multi-component grips 0.3 – 1.3 1.0 14.0 11.0 7.5 70
77 32 115 ESD 025122 115 mirror polished with multi-component grips 0.3 – 1.3 1.0 0.5 14.0 11.0 7.0 70
77 32 130 ESD 089193 130 0.3 – 2.0 1.3 0.6 16.2 13.0 8.5 80
77 42 115 ESD 031901 115 0.3 – 1.3 0.8 14.0 11.0 7.0 70
77 42 130 ESD 089216 130 mirror polished with multi-component grips 0.3 – 1.6 1.3 16.2 13.0 8.5 80
77 52 115 ESD 025139 115 mirror polished with multi-component grips 0.3 – 1.0 0.8 0.5 14.0 11.0 7.0 70
77 72 115 ESD 024330 115 mirror polished with multi-component grips 0.3 – 0.8 10.5 11.0 6.0 70
77 82 130 ESD 089179 130 mirror polished with multi-component grips 0.3 – 1.6 1.3 16.2 13.0 8.5 81

270 I ELECTRONICS PLIERS AND PRECISION TWEEZERS
