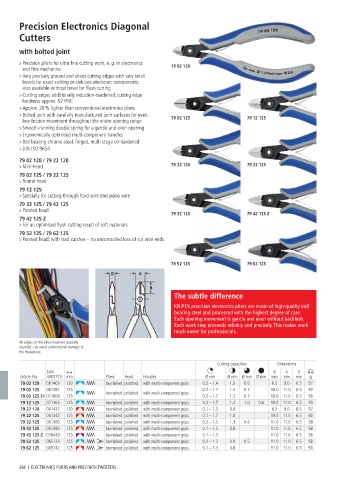

Page 266 - 凯尼派克英文通用样本2024knipex

Precision Electronics Diagonal

Cutters

with bolted joint
> Precision pliers for ultra fine cutting work, e. g. in electronics
and fine mechanics 79 02 120
> Very precisely ground and sharp cutting edges with very small
bevels for exact cutting on delicate electronic components;
also available without bevel for flush cutting
> Cutting edges additionally induction-hardened, cutting edge
hardness approx. 62 HRC
> Approx. 20 % lighter than conventional electronics pliers
> Bolted joint with carefully manufactured joint surfaces for even,
low-friction movement throughout the entire opening range 79 02 125 79 12 125
> Smooth-running double spring for a gentle and even opening
> Ergonomically optimised multi-component handles
> Ball bearing chrome steel, forged, multi stage oil-hardened
> DIN ISO 9654
79 02 120 / 79 22 120
> Mini-head 79 22 120 79 22 125
79 02 125 / 79 22 125
> Round head
79 12 125
> Specially for cutting through hard wire and piano wire
79 32 125 / 79 42 125
> Pointed head
79 32 125 79 42 125 Z
79 42 125 Z
> For an optimised flush cutting result of soft materials
79 52 125 / 79 62 125
> Pointed head; with lead catcher – no uncontrolled loss of cut wire ends

79 52 125 79 62 125

The subtle difference
KNIPEX precision electronics pliers are made of high-quality ball
bearing steel and processed with the highest degree of care.
Each opening movement is gentle and even without backlash.
Each work step proceeds reliably and precisely. This makes work
much easier for professionals.
All edges on the pliers head are specially
rounded – to avoid unintentional damage to
the insulations
Cutting capacities Dimensions
EAN B A D
Article No. 4003773- mm Pliers Head Handles Ø mm Ø mm Ø mm Ø mm mm mm mm g
79 02 120 061403 120 burnished polished with multi-component grips 0.2 – 1.4 1.0 0.6 6.5 9.0 6.5 57
79 02 125 061281 125 burnished polished with multi-component grips 0.2 – 1.7 1.3 0.7 10.0 11.0 6.5 59
79 02 125 S1 071808 125 0.2 – 1.7 1.3 0.7 10.0 11.0 6.5 59
79 12 125 071365 125 burnished polished with multi-component grips 0.3 – 1.7 1.3 1.0 0.6 10.0 11.0 6.5 59
79 22 120 061427 120 burnished polished with multi-component grips 0.1 – 1.3 0.8 6.5 9.0 6.5 57
79 22 125 061342 125 burnished polished with multi-component grips 0.1 – 1.7 1.0 10.0 11.0 6.5 60
79 32 125 061366 125 burnished polished with multi-component grips 0.2 – 1.5 1.1 0.6 11.0 11.0 6.5 58
79 42 125 061380 125 burnished polished with multi-component grips 0.1 – 1.5 0.8 11.0 11.0 6.5 58
79 42 125 Z 078449 125 burnished polished with multi-component grips 0.1 – 1.3 11.0 11.0 6.5 58
79 52 125 065135 125 burnished polished with multi-component grips 0.2 – 1.3 0.9 0.5 11.0 11.0 6.5 58
79 62 125 065142 125 burnished polished with multi-component grips 0.1 – 1.3 0.8 11.0 11.0 6.5 58

266 I ELECTRONICS PLIERS AND PRECISION TWEEZERS
