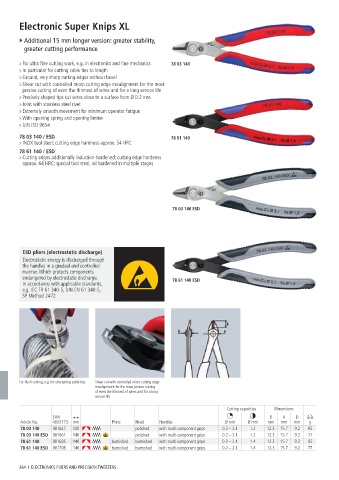

Electronic Super Knips XL

► Additional 15 mm longer version: greater stability,
greater cutting performance

> For ultra fine cutting work, e.g. in electronics and fine mechanics 78 03 140
> In particular for cutting cable ties to length
> Ground, very sharp cutting edges without bevel
> Shear cut with controlled micro cutting edge misalignment for the most
precise cutting of even the thinnest of wires and for a long service life
> Precisely shaped tips cut wires close to a surface from Ø 0.2 mm
> Joint with stainless steel rivet
> Extremely smooth movement for minimum operator fatigue
> With opening spring and opening limiter
> DIN ISO 9654
78 03 140 / ESD 78 61 140
> INOX tool steel; cutting edge hardness approx. 54 HRC
78 61 140 / ESD
> Cutting edges additionally induction-hardened; cutting edge hardness
approx. 64 HRC; special tool steel, oil hardened in multiple stages

78 03 140 ESD

ESD pliers (electrostatic discharge)
Electrostatic energy is discharged through
the handles in a gradual and controlled
manner. Which protects components
endangered by electrostatic discharge. 78 61 140 ESD
In accordance with applicable standards,
e.g. IEC TR 61 340-5, DIN EN 61 340-5,
SP Method 2472

For flush cutting, e.g. for shortening cable ties Shear cut with controlled micro cutting edge
misalignment for the most precise cutting
of even the thinnest of wires and for a long
service life

Cutting capacities Dimensions
EAN B A D
Article No. 4003773- mm Pliers Head Handles Ø mm Ø mm mm mm mm g
78 03 140 081647 140 polished with multi-component grips 0.2 – 2.1 1.2 12.3 15.7 9.2 85
78 03 140 ESD 081661 140 polished with multi-component grips 0.2 – 2.1 1.2 12.3 15.7 9.2 77
78 61 140 081685 140 burnished burnished with multi-component grips 0.2 – 2.1 1.4 12.3 15.7 9.2 85
78 61 140 ESD 081708 140 burnished burnished with multi-component grips 0.2 – 2.1 1.4 12.3 15.7 9.2 77

264 I ELECTRONICS PLIERS AND PRECISION TWEEZERS
