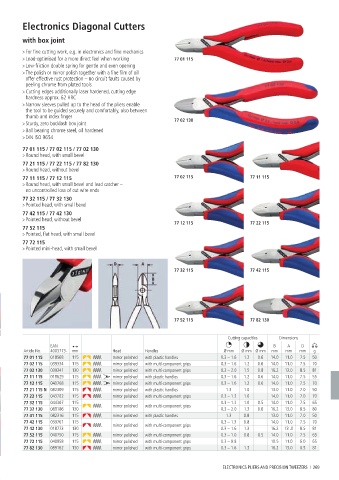

Electronics Diagonal Cutters

with box joint

> For fine cutting work, e.g. in electronics and fine mechanics
> Load-optimised for a more direct feel when working 77 01 115
> Low-friction double spring for gentle and even opening
> The polish or mirror polish together with a fine film of oil
offer effective rust protection – no circuit faults caused by
peeling chrome from plated tools
> Cutting edges additionally laser hardened, cutting edge
hardness approx. 62 HRC
> Narrow sleeves pulled up to the head of the pliers enable
the tool to be guided securely and comfortably, also between
thumb and index finger
> Sturdy, zero backlash box joint 77 02 130
> Ball bearing chrome steel, oil hardened
> DIN ISO 9654

77 01 115 / 77 02 115 / 77 02 130
> Round head, with small bevel
77 21 115 / 77 22 115 / 77 82 130
> Round head, without bevel
77 11 115 / 77 12 115 77 02 115 77 11 115
> Round head, with small bevel and lead catcher –
no uncontrolled loss of cut wire ends
77 32 115 / 77 32 130
> Pointed head, with small bevel
77 42 115 / 77 42 130
> Pointed head, without bevel
77 12 115 77 22 115
77 52 115
> Pointed, flat head, with small bevel
77 72 115
> Pointed mini-head, with small bevel

77 32 115 77 42 115

77 52 115 77 82 130

Cutting capacities Dimensions
EAN B A D
Article No. 4003773- mm Head Handles Ø mm Ø mm Ø mm mm mm mm g
77 01 115 018568 115 mirror polished with plastic handles 0.3 – 1.6 1.2 0.6 14.0 11.0 7.5 50
77 02 115 039334 115 mirror polished with multi-component grips 0.3 – 1.6 1.2 0.6 14.0 11.0 7.5 70
77 02 130 039341 130 mirror polished with multi-component grips 0.3 – 2.0 1.5 0.8 16.2 13.0 8.5 81
77 11 115 018629 115 mirror polished with plastic handles 0.3 – 1.6 1.2 0.6 14.0 11.0 7.5 55
77 12 115 043768 115 mirror polished with multi-component grips 0.3 – 1.6 1.2 0.6 14.0 11.0 7.5 70
77 21 115 N 082309 115 mirror polished with plastic handles 1.3 1.0 13.0 11.0 7.0 50
77 22 115 043782 115 mirror polished with multi-component grips 0.3 – 1.3 1.0 14.0 11.0 7.0 70
77 32 115 044307 115 0.3 – 1.3 1.0 0.5 14.0 11.0 7.5 65
77 32 130 089186 130 mirror polished with multi-component grips 0.3 – 2.0 1.3 0.6 16.2 13.0 8.5 80
77 41 115 082316 115 mirror polished with plastic handles 1.3 0.8 13.0 11.0 7.0 50
77 42 115 039761 115 mirror polished with multi-component grips 0.3 – 1.3 0.8 14.0 11.0 7.5 70
77 42 130 018773 130 0.3 – 1.6 1.3 16.2 13 .0 8.5 81
77 52 115 040750 115 mirror polished with multi-component grips 0.3 – 1.0 0.8 0.5 14.0 11.0 7.5 65
77 72 115 040958 115 mirror polished with multi-component grips 0.3 – 0.8 10.5 11.0 6.0 65
77 82 130 089162 130 mirror polished with multi-component grips 0.3 – 1.6 1.3 16.2 13.0 8.5 81

ELECTRONICS PLIERS AND PRECISION TWEEZERS I 269
