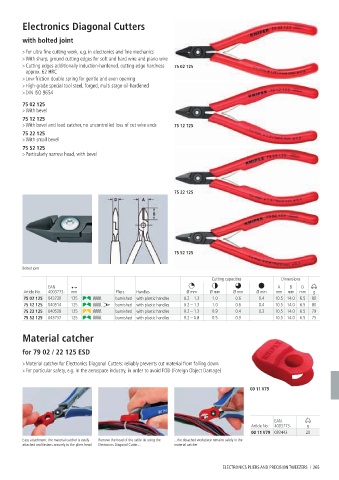

Electronics Diagonal Cutters

with bolted joint

> For ultra fine cutting work, e.g. in electronics and fine mechanics
> With sharp, ground cutting edges for soft and hard wire and piano wire
> Cutting edges additionally induction-hardened, cutting edge hardness 75 02 125
approx. 62 HRC
> Low-friction double spring for gentle and even opening
> High-grade special tool steel, forged, multi stage oil-hardened
> DIN ISO 9654
75 02 125
> With bevel
75 12 125
> With bevel and lead catcher, no uncontrolled loss of cut wire ends 75 12 125
75 22 125
> With small bevel
75 52 125
> Particularly narrow head, with bevel

75 22 125

75 52 125

Bolted joint
Cutting capacities Dimensions
EAN A B D
Article No. 4003773- mm Pliers Handles Ø mm Ø mm Ø mm Ø mm mm mm mm g
75 02 125 043720 125 burnished with plastic handles 0.2 – 1.3 1.0 0.6 0.4 10.5 14.0 6.5 80
75 12 125 040514 125 burnished with plastic handles 0.2 – 1.3 1.0 0.6 0.4 10.5 14.0 6.5 80
75 22 125 040538 125 burnished with plastic handles 0.2 – 1.3 0.9 0.4 0.3 10.5 14.0 6.5 79
75 52 125 043737 125 burnished with plastic handles 0.2 – 0.8 0.5 0.3 10.5 14.0 6.5 75

Material catcher

for 79 02 / 22 125 ESD
> Material catcher for Electronics Diagonal Cutters: reliably prevents cut material from falling down
> For particular safety, e.g. in the aerospace industry, in order to avoid FOD (Foreign Object Damage)

00 11 V79

EAN
Article No. 4003773- g
00 11 V79 083443 20
Easy attachment: the material catcher is easily Remove the head of the cable tie using the ...the detached workpiece remains safely in the
attached and fastens securely to the pliers head Electronics Diagonal Cutter… material catcher

ELECTRONICS PLIERS AND PRECISION TWEEZERS I 265
