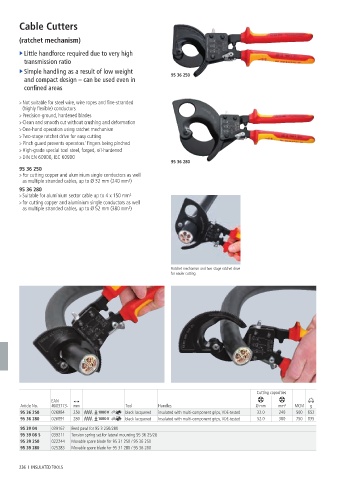

Cable Cutters

(ratchet mechanism)

► Little handforce required due to very high
transmission ratio
► Simple handling as a result of low weight
95 36 250
and compact design – can be used even in
confined areas

> Not suitable for steel wire, wire ropes and fine-stranded
(highly flexible) conductors
> Precision-ground, hardened blades
> Clean and smooth cut without crushing and deformation
> One-hand operation using ratchet mechanism
> Two-stage ratchet drive for easy cutting
> Pinch guard prevents operators' fingers being pinched
> High-grade special tool steel, forged, oil-hardened
> DIN EN 60900, IEC 60900
95 36 280
95 36 250
> For cutting copper and aluminium single conductors as well
as multiple stranded cables, up to Ø 32 mm (240 mm²)
95 36 280
> Suitable for aluminium sector cable up to 4 x 150 mm²
> for cutting copper and aluminium single conductors as well
as multiple stranded cables, up to Ø 52 mm (380 mm²)

Ratchet mechanism and two-stage ratchet drive
for easier cutting

Cutting capacities
EAN
Article No. 4003773- mm Tool Handles Ø mm mm² MCM g
95 36 250 026884 250 black lacquered insulated with multi-component grips, VDE-tested 32.0 240 500 652
95 36 280 026891 280 black lacquered insulated with multi-component grips, VDE-tested 52.0 380 750 835
95 39 04 039167 Feed pawl for 95 3 250/280
95 39 08 S 039211 Tension spring set for lateral mounting 95 36 25/28
95 39 250 022244 Movable spare blade for 95 31 250 / 95 36 250
95 39 280 025283 Movable spare blade for 95 31 280 / 95 36 280

236 I INSULATED TOOLS
