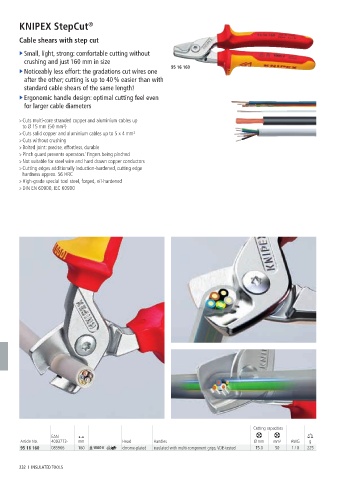

Page 232 - 凯尼派克英文通用样本2024knipex

®
KNIPEX StepCut

Cable shears with step cut

► Small, light, strong: comfortable cutting without
crushing and just 160 mm in size
95 16 160
► Noticeably less effort: the gradations cut wires one
after the other; cutting is up to 40 % easier than with
standard cable shears of the same length!
► Ergonomic handle design: optimal cutting feel even

for larger cable diameters

> Cuts multi-core stranded copper and aluminium cables up
to Ø 15 mm (50 mm²)
> Cuts solid copper and aluminium cables up to 5 x 4 mm²
> Cuts without crushing
> Bolted joint: precise, effortless, durable
> Pinch guard prevents operators' fingers being pinched
> Not suitable for steel wire and hard drawn copper conductors
> Cutting edges additionally induction-hardened, cutting edge
hardness approx. 56 HRC
> High-grade special tool steel, forged, oil-hardened
> DIN EN 60900, IEC 60900

Cutting capacities
EAN
Article No. 4003773- mm Head Handles Ø mm mm² AWG g
95 16 160 085966 160 chrome-plated insulated with multi-component grips, VDE-tested 15.0 50 1 / 0 225

232 I INSULATED TOOLS
