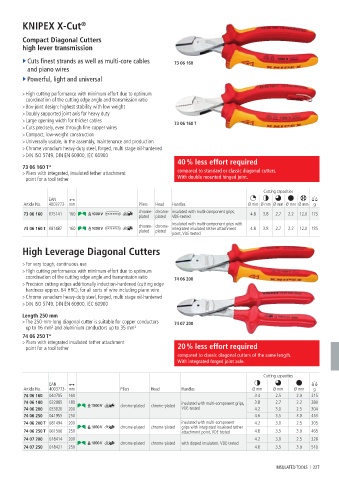

KNIPEX X-Cut

Compact Diagonal Cutters
high lever transmission
► Cuts finest strands as well as multi-core cables 73 06 160
and piano wires

► Powerful, light and universal

> High cutting performance with minimum effort due to optimum
coordination of the cutting edge angle and transmission ratio
> Box-joint design: highest stability with low weight
> Doubly supported joint axis for heavy duty
> Large opening width for thicker cables 73 06 160 T
> Cuts precisely, even through fine copper wires
> Compact, low-weight construction
> Universally usable, in the assembly, maintenance and production
> Chrome vanadium heavy-duty steel, forged, multi stage oil-hardened
> DIN ISO 5749, DIN EN 60900, IEC 60900
40 % less effort required
73 06 160 T*
> Pliers with integrated, insulated tether attachment compared to standard or classic diagonal cutters.
point for a tool tether With double mounted hinged joint.

Cutting capacities
EAN
Article No. 4003773- mm Pliers Head Handles Ø mm Ø mm Ø mm Ø mm Ø mm g
73 06 160 075141 160 chrome- chrome- insulated with multi-component grips, 4.8 3.8 2.7 2.2 12.0 175
plated plated VDE-tested
insulated with multi-component grips with
chrome- chrome-
73 06 160 T 081487 160 plated plated integrated insulated tether attachment 4.8 3.8 2.7 2.2 12.0 185
point, VDE tested

High Leverage Diagonal Cutters
> For very tough, continuous use
> High cutting performance with minimum effort due to optimum
coordination of the cutting edge angle and transmission ratio 74 06 200
> Precision cutting edges additionally induction-hardened (cutting edge
hardness approx. 64 HRC), for all sorts of wire including piano wire
> Chrome vanadium heavy-duty steel, forged, multi stage oil-hardened
> DIN ISO 5749, DIN EN 60900, IEC 60900
Length 250 mm
> The 250-mm-long diagonal cutter is suitable for copper conductors 74 07 200
up to 16 mm² and aluminium conductors up to 35 mm²
74 06 250 T*
> Pliers with integrated insulated tether attachment
point for a tool tether 20 % less effort required
compared to classic diagonal cutters of the same length.
With integrated forged joint axle.

Cutting capacities
EAN
Article No. 4003773- mm Pliers Head Handles Ø mm Ø mm Ø mm g
74 06 160 040705 160 3.4 2.5 2.0 215
74 06 180 022985 180 insulated with multi-component grips, 3.8 2.7 2.2 280
74 06 200 033820 200 chrome-plated chrome-plated VDE-tested 4.2 3.0 2.5 304
74 06 250 041955 250 4.6 3.5 3.0 453
74 06 200 T 081494 200 insulated with multi-component 4.2 3.0 2.5 305
chrome-plated chrome-plated grips with integrated insulated tether
74 06 250 T 081500 250 attachment point, VDE tested 4.6 3.5 3.0 465
74 07 200 018414 200 4.2 3.0 2.5 328
chrome-plated chrome-plated with dipped insulation, VDE-tested
74 07 250 018421 250 4.6 3.5 3.0 510

INSULATED TOOLS I 227
