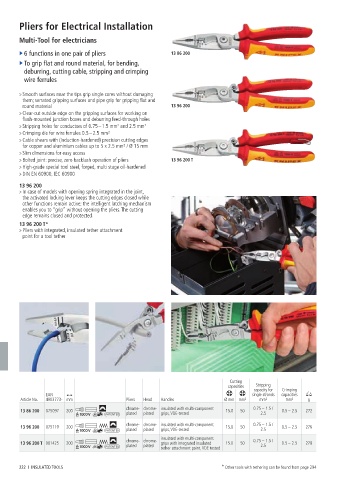

Pliers for Electrical Installation

Multi-Tool for electricians

► 6 functions in one pair of pliers 13 86 200
► To grip flat and round material, for bending,
deburring, cutting cable, stripping and crimping
wire ferrules

> Smooth surfaces near the tips grip single cores without damaging
them; serrated gripping surfaces and pipe grip for gripping flat and
round material 13 96 200
> Clear-cut outside edge on the gripping surfaces for working on
flush-mounted junction boxes and deburring feed-through holes
> Stripping holes for conductors of 0.75 – 1.5 mm² and 2.5 mm²
> Crimping die for wire ferrules 0.5 – 2.5 mm²
> Cable shears with (induction-hardened) precision cutting edges
for copper and aluminium cables up to 5 x 2.5 mm² / Ø 15 mm
> Slim dimensions for easy access
> Bolted joint: precise, zero backlash operation of pliers 13 96 200 T
> High-grade special tool steel, forged, multi stage oil-hardened
> DIN EN 60900, IEC 60900

13 96 200
> In case of models with opening spring integrated in the joint,
the activated locking lever keeps the cutting edges closed while
other functions remain active; the intelligent latching mechanism
enables you to “grip” without opening the pliers. The cutting
edge remains closed and protected.
13 96 200 T*
> Pliers with integrated, insulated tether attachment
point for a tool tether

Cutting
capacities Stripping
capacity for Crimping
EAN single strands capacities
Article No. 4003773- mm Pliers Head Handles Ø mm mm² mm² mm² g

13 86 200 075097 200 chrome- chrome- insulated with multi-component 15.0 50 0.75 – 1.5 / 0.5 – 2.5 272
plated plated grips, VDE-tested 2.5
13 96 200 075110 200 chrome- chrome- insulated with multi-component 15.0 50 0.75 – 1.5 / 0.5 – 2.5 276
plated plated grips, VDE-tested 2.5
insulated with multi-component
13 96 200 T 081425 200 chrome- chrome- grips with integrated insulated 15.0 50 0.75 – 1.5 / 0.5 – 2.5 278
plated plated tether attachment point, VDE tested 2.5

222 I INSULATED TOOLS * Other tools with tethering can be found from page 294
