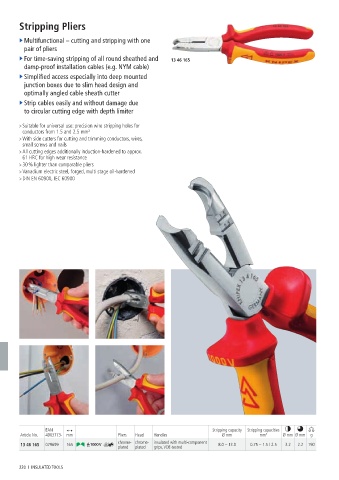

Stripping Pliers

► Multifunctional – cutting and stripping with one
pair of pliers
► For time-saving stripping of all round sheathed and 13 46 165
damp-proof installation cables (e.g. NYM cable)
► Simplified access especially into deep mounted
junction boxes due to slim head design and
optimally angled cable sheath cutter
► Strip cables easily and without damage due
to circular cutting edge with depth limiter

> Suitable for universal use: precision wire stripping holes for
conductors from 1.5 and 2.5 mm²
> With side cutters for cutting and trimming conductors, wires,
small screws and nails
> All cutting edges additionally induction-hardened to approx.
61 HRC for high wear resistance
> 30 % lighter than comparable pliers
> Vanadium electric steel, forged, multi stage oil-hardened
> DIN EN 60900, IEC 60900

EAN Stripping capacity Stripping capacities
Article No. 4003773- mm Pliers Head Handles Ø mm mm² Ø mm Ø mm g
chrome- chrome- insulated with multi-component
13 46 165 079699 165 plated plated grips, VDE-tested 8.0 – 13.0 0.75 – 1.5 / 2.5 3.2 2.2 190

220 I INSULATED TOOLS
