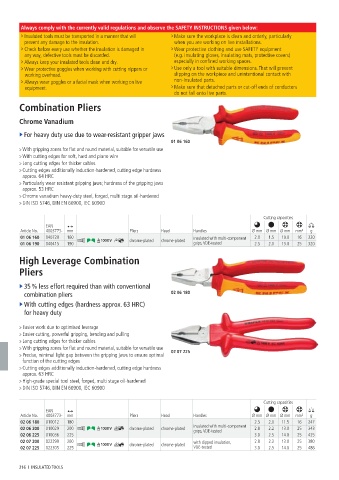

Page 216 - 凯尼派克英文通用样本2024knipex

Always comply with the currently valid regulations and observe the SAFETY INSTRUCTIONS given below:
> Insulated tools must be transported in a manner that will > Make sure the workplace is clean and orderly, particularly
prevent any damage to the insulation. when you are working on live installations.
> Check before every use whether the insulation is damaged in > Wear protective clothing and use SAFETY equipment
any way, defective tools must be discarded. (e.g. insulating gloves, insulating mats, protective covers)
> Always keep your insulated tools clean and dry. especially in confined working spaces.
> Wear protective goggles when working with cutting nippers or > Use only a tool with suitable dimensions. That will prevent
working overhead. slipping on the workpiece and unintentional contact with
> Always wear goggles or a facial mask when working on live non-insulated parts.
equipment. > Make sure that detached parts or cut-off ends of conductors
do not fall onto live parts.

Combination Pliers

Chrome Vanadium

► For heavy duty use due to wear-resistant gripper jaws
01 06 160
> With gripping zones for flat and round material, suitable for versatile use
> With cutting edges for soft, hard and piano wire
> Long cutting edges for thicker cables
> Cutting edges additionally induction-hardened, cutting edge hardness
approx. 64 HRC
> Particularly wear resistant gripping jaws; hardness of the gripping jaws
approx. 53 HRC
> Chrome vanadium heavy-duty steel, forged, multi stage oil-hardened
> DIN ISO 5746, DIN EN 60900, IEC 60900

Cutting capacities
EAN
Article No. 4003773- mm Pliers Head Handles Ø mm Ø mm Ø mm mm² g
01 06 160 040729 160 chrome-plated chrome-plated insulated with multi-component 2.0 1.5 10.0 16 220
01 06 190 040415 190 grips, VDE-tested 2.5 2.0 13.0 25 320

High Leverage Combination

Pliers

► 35 % less effort required than with conventional
combination pliers 02 06 180
► With cutting edges (hardness approx. 63 HRC)
for heavy duty

> Easier work due to optimised leverage
> Easier cutting, powerful gripping, bending and pulling
> Long cutting edges for thicker cables
> With gripping zones for flat and round material, suitable for versatile use
> Precise, minimal light gap between the gripping jaws to ensure optimal 02 07 225
function of the cutting edges
> Cutting edges additionally induction-hardened, cutting edge hardness
approx. 63 HRC
> High-grade special tool steel, forged, multi stage oil-hardened
> DIN ISO 5746, DIN EN 60900, IEC 60900

Cutting capacities
EAN
Article No. 4003773- mm Pliers Head Handles Ø mm Ø mm Ø mm mm² g
02 06 180 010012 180 2.5 2.0 11.5 16 247
02 06 200 010029 200 chrome-plated chrome-plated insulated with multi-component 2.8 2.2 13.0 25 343
grips, VDE-tested
02 06 225 010036 225 3.0 2.5 14.0 25 425
02 07 200 022299 200 chrome-plated chrome-plated with dipped insulation, 2.8 2.2 13.0 25 380
02 07 225 022305 225 VDE-tested 3.0 2.5 14.0 25 486

216 I INSULATED TOOLS
