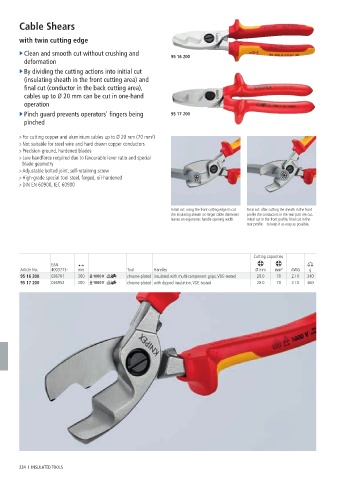

Cable Shears

with twin cutting edge

► Clean and smooth cut without crushing and 95 16 200
deformation
► By dividing the cutting actions into initial cut
(insulating sheath in the front cutting area) and
final cut (conductor in the back cutting area),
cables up to Ø 20 mm can be cut in one-hand
operation
► Pinch guard prevents operators' fingers being 95 17 200
pinched

> For cutting copper and aluminium cables up to Ø 20 mm (70 mm²)
> Not suitable for steel wire and hard drawn copper conductors
> Precision-ground, hardened blades
> Low handforce required due to favourable lever ratio and special
blade geometry
> Adjustable bolted joint, self-retaining screw
> High-grade special tool steel, forged, oil-hardened
> DIN EN 60900, IEC 60900

Initial cut: using the front cutting edge to cut Final cut: after cutting the sheath in the front
the insulating sheath on larger cable diameters profile the conductors in the rear part are cut.
leaves an ergonomic handle opening width. Initial cut in the front profile, final cut in the
rear profile – to keep it as easy as possible.

Cutting capacities
EAN
Article No. 4003773- mm Tool Handles Ø mm mm² AWG g
95 16 200 026761 200 chrome-plated insulated with multi-component grips, VDE-tested 20.0 70 2 / 0 340
95 17 200 026952 200 chrome-plated with dipped insulation, VDE-tested 20.0 70 2 / 0 360

234 I INSULATED TOOLS
