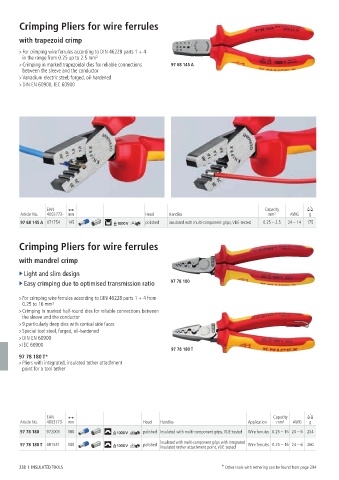

Page 238 - 凯尼派克英文通用样本2024knipex

Crimping Pliers for wire ferrules

with trapezoid crimp

> For crimping wire ferrules according to DIN 46228 parts 1 + 4
in the range from 0.25 up to 2.5 mm²
> Crimping in marked trapezoidal dies for reliable connections 97 68 145 A
between the sleeve and the conductor
> Vanadium electric steel; forged, oil-hardened
> DIN EN 60900, IEC 60900

EAN Capacity
Article No. 4003773- mm Head Handles mm² AWG g
97 68 145 A 071754 145 polished insulated with multi-component grips, VDE-tested 0.25 – 2.5 24 – 14 175

Crimping Pliers for wire ferrules

with mandrel crimp

► Light and slim design

► Easy crimping due to optimised transmission ratio 97 78 180

> For crimping wire ferrules according to DIN 46228 parts 1 + 4 from
0.25 to 16 mm²
> Crimping in marked half-round dies for reliable connections between
the sleeve and the conductor
> 9 particularly deep dies with conical side faces
> Special tool steel, forged, oil-hardened
> DIN EN 60900
> IEC 60900
97 78 180 T
97 78 180 T*
> Pliers with integrated, insulated tether attachment
point for a tool tether

EAN Capacity
Article No. 4003773- mm Head Handles Application mm² AWG g
97 78 180 072003 180 polished insulated with multi-component grips, VDE-tested Wire ferrules 0.25 – 16 24 – 6 254
insulated with multi-component grips with integrated
97 78 180 T 081531 180 polished Wire ferrules 0.25 – 16 24 – 6 260
insulated tether attachment point, VDE tested

238 I INSULATED TOOLS * Other tools with tethering can be found from page 294
