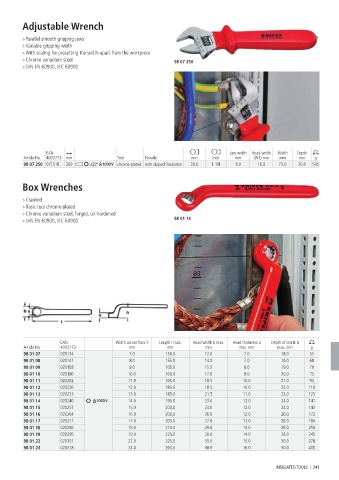

Page 241 - 凯尼派克英文通用样本2024knipex

Adjustable Wrench
> Parallel smooth gripping jaws
> Variable gripping width
> With scaling for presetting the width apart from the workpiece
> Chrome vanadium steel 98 07 250
> DIN EN 60900, IEC 60900

EAN Jaw width Head width Width Depth
Article No. 4003773- mm Tool Handle mm Inch mm (W3) mm mm mm g
98 07 250 071518 260 22° chrome-plated with dipped insulation 30,0 1 1/8 8,0 16,0 73,0 20,0 545

Box Wrenches
> Cranked
> Basic tool chrome-plated
> Chrome vanadium steel, forged, oil-hardened
> DIN EN 60900, IEC 60900 98 01 14

EAN Width across flats S Length l max. Head width b max. Head thickness a Depth of crank h
Article No. 4003773- mm mm mm max. mm max. mm g
98 01 07 020134 7.0 150.0 12.0 7.0 18.0 55
98 01 08 020141 8.0 155.0 14.0 7.0 19.0 68
98 01 09 020158 9.0 165.0 15.5 8.0 19.0 78
98 01 10 020196 10.0 160.0 17.0 9.0 20.0 75
98 01 11 020202 11.0 165.0 18.5 10.0 21.0 93
98 01 12 020226 12.0 185.0 18.5 10.0 23.0 118
98 01 13 020233 13.0 185.0 21.5 11.0 23.0 125
98 01 14 020240 14.0 195.0 23.0 12.0 24.0 147
98 01 15 020257 15.0 200.0 24.0 12.0 24.0 143
98 01 16 020264 16.0 200.0 26.0 12.0 26.0 172
98 01 17 020271 17.0 205.0 27.0 13.0 26.0 184
98 01 18 020288 18.0 210.0 29.0 13.0 28.0 210
98 01 19 020295 19.0 225.0 30.0 14.0 28.0 245
98 01 22 020301 22.0 225.0 35.0 15.0 30.0 278
98 01 24 020318 24.0 265.0 38.0 16.0 30.0 415

INSULATED TOOLS I 241
