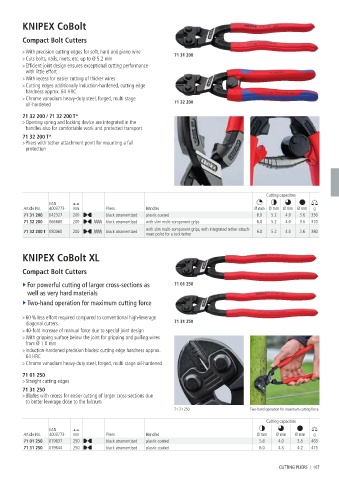

Page 107 - 凯尼派克英文通用样本2024knipex

KNIPEX CoBolt

Compact Bolt Cutters

> With precision cutting edges for soft, hard and piano wire
> Cuts bolts, nails, rivets, etc. up to Ø 5.2 mm 71 31 200
> Efficient joint design ensures exceptional cutting performance
with little effort
> With recess for easier cutting of thicker wires
> Cutting edges additionally induction-hardened, cutting edge
hardness approx. 64 HRC
> Chrome vanadium heavy-duty steel, forged, multi stage
oil-hardened 71 32 200

71 32 200 / 71 32 200 T*
> Opening spring and locking device are integrated in the
handles also for comfortable work and protected transport
71 32 200 T*
> Pliers with tether attachment point for mounting a fall
protection

Cutting capacities
EAN
Article No. 4003773- mm Pliers Handles Ø mm Ø mm Ø mm Ø mm g
71 31 200 042327 200 black atramentized plastic coated 6.0 5.2 4.0 3.6 330
71 32 200 066880 200 black atramentized with slim multi-component grips 6.0 5.2 4.0 3.6 370
with slim multi-component grips, with integrated tether attach-
71 32 200 T 080060 200 black atramentized 6.0 5.2 4.0 3.6 380
ment point for a tool tether

KNIPEX CoBolt XL

Compact Bolt Cutters

► For powerful cutting of larger cross-sections as 71 01 250
well as very hard materials

► Two-hand operation for maximum cutting force

> 60 % less effort required compared to conventional high-leverage
diagonal cutters 71 31 250
> 40-fold increase of manual force due to special joint design
> With gripping surface below the joint for gripping and pulling wires
from Ø 1.0 mm
> Induction-hardened precision blades: cutting edge hardness approx.
64 HRC
> Chrome vanadium heavy-duty steel, forged, multi stage oil-hardened

71 01 250
> Straight cutting edges
71 31 250
> Blades with recess for easier cutting of larger cross-sections due
to better leverage close to the fulcrum
71 31 250 Two-hand operation for maximum cutting force

Cutting capacities
EAN
Article No. 4003773- mm Pliers Handles Ø mm Ø mm Ø mm g
71 01 250 079637 250 black atramentized plastic coated 5.6 4.0 3.8 465
71 31 250 079644 250 black atramentized plastic coated 6.0 4.3 4.2 475

CUTTING PLIERS I 107
